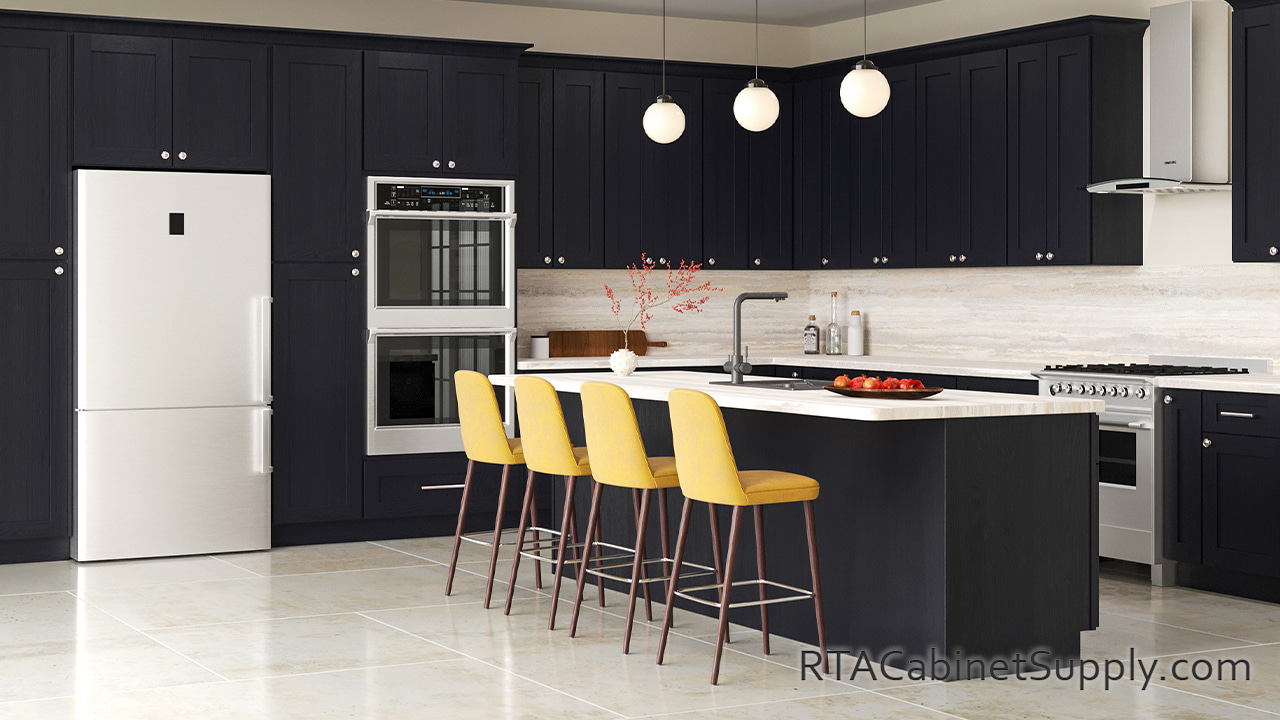

Newport Blaze Black Shaker kitchen front view with an island.

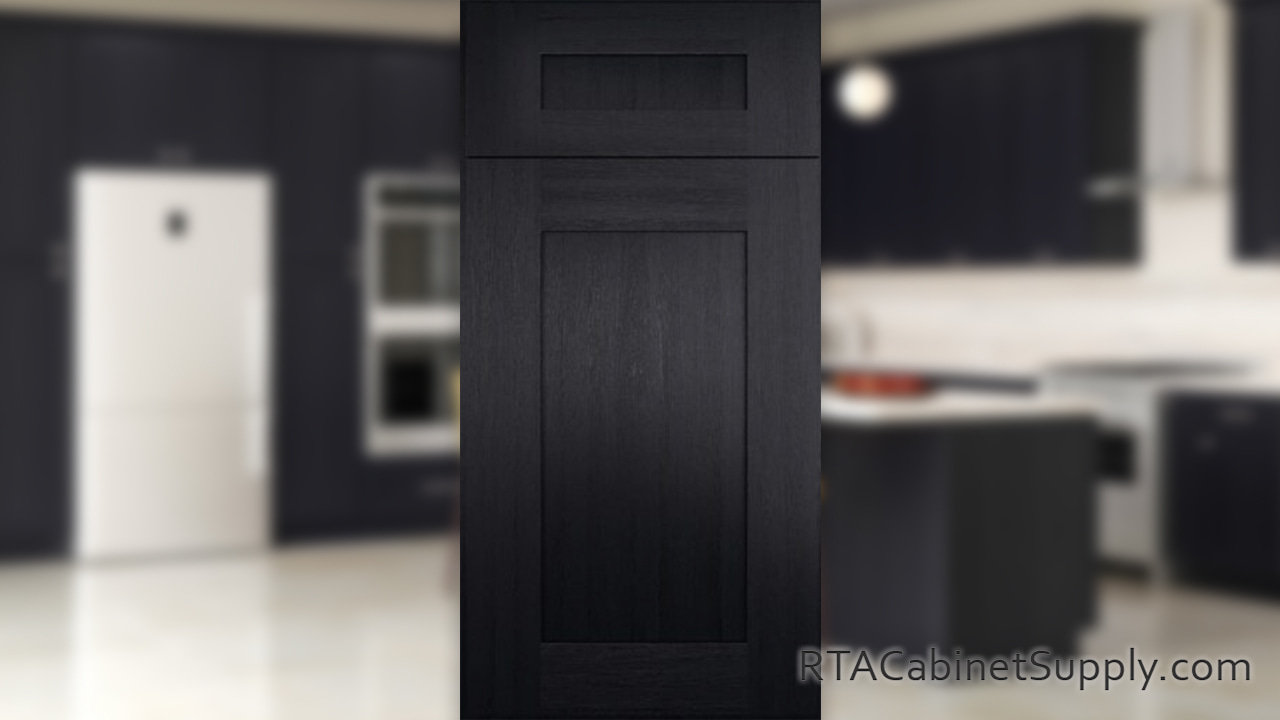

Newport Blaze Black Shaker cabinet front.

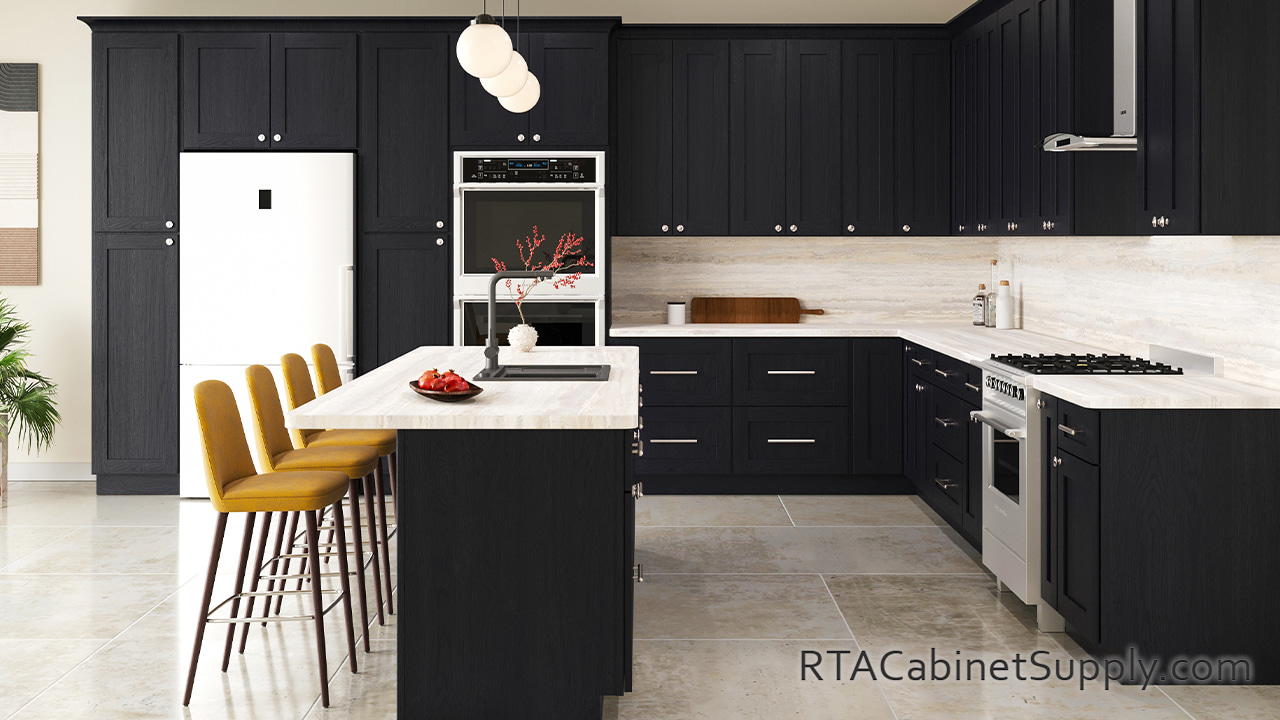

Newport Blaze Black Shaker kitchen full view with an island.

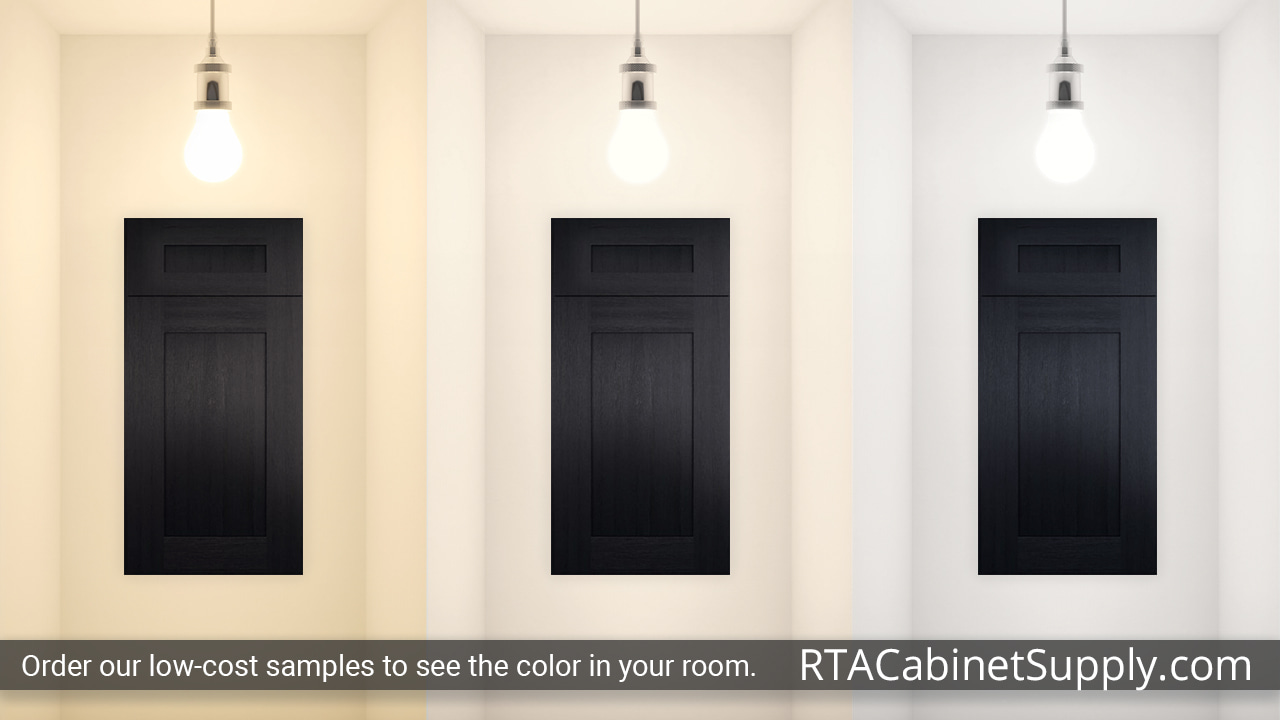

Newport Blaze Black Shaker cabinet door under different light.

ABOUT NEWPORT BLAZE BLACK SHAKER RTA CABINETS

Newport Blaze Black Shaker is a RTA cabinet line with a black color stain. It comes with an advanced hardware, full overlay doors and matching color interior. The shaker style has held on to its indomitable strength over the centuries to remain as a definite style influence in interiors even today.

Best price guarantee

We are confident you get the best deal possible with us. All our cabinets are backed by the 90 Day Best Price Guarantee. If you find the same product from another retailer for less, we will beat the competitor price even after you placed the order with us. See full details and limitations.

Shipping time

Newport Blaze Black Shaker ready to assemble cabinets leave the warehouse in 5-7 business days after placing an order. Standard transit time after shipping is 2-6 business days. We are proud to offer one of the industry's fastest delivery times.

Detailed Specifications

Cabinet Specifications

The product specifications, including sizes, parts, height, width, and more, are provided below. Please note that these details may differ based on the specific product line.

General specifications
Color & finish	Black waterborne UV finish from Sherwin Williams®
Profile & overlay	Shaker style, full overlay
Sides color	Matches cabinet front, no skins required.

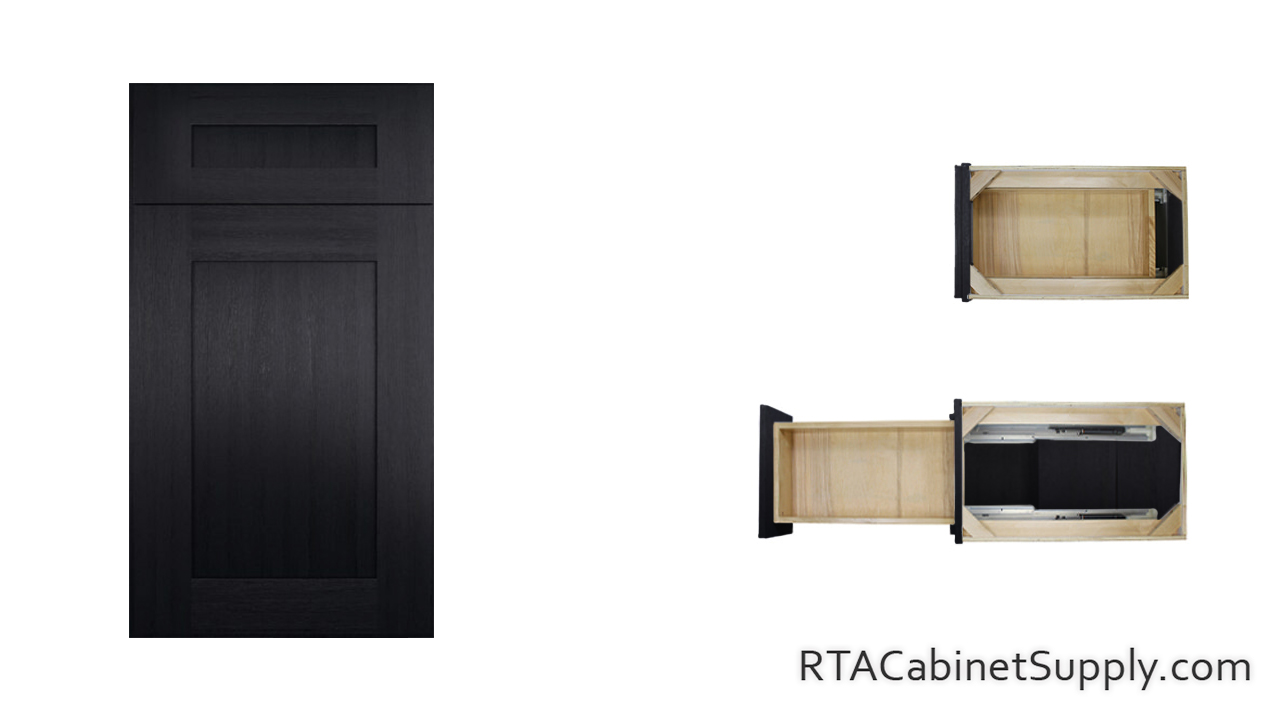

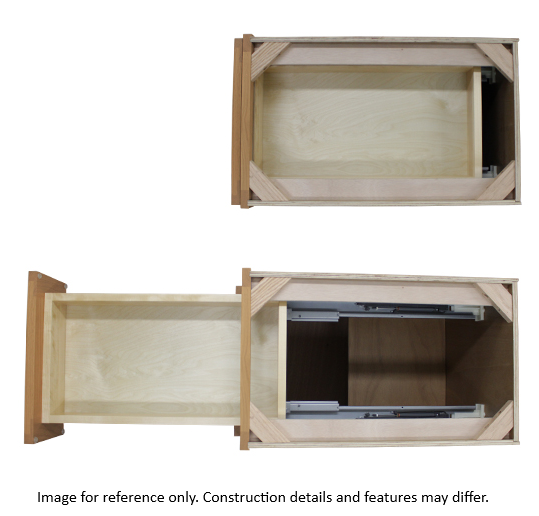

Drawers	Drawer length 21", dovetail construction, natural finish. 17 mm (close to 3/4" thick) dovetail solid wood frame. Soft closing, under-mount, full extension, 6 way adjustable. Soft closing drawer examples: Video, Picture. Drawer box: Picture.
Door hinges	Euro-style, soft closing, concealed, 6 way adjustable. The soft closing mode can be turned off. Soft closing door hinge example: Video
Interior color	Matches cabinet front
Doors	3/4" solid birch door frame, MDF maple veneer center panel. Why do we use MDF?

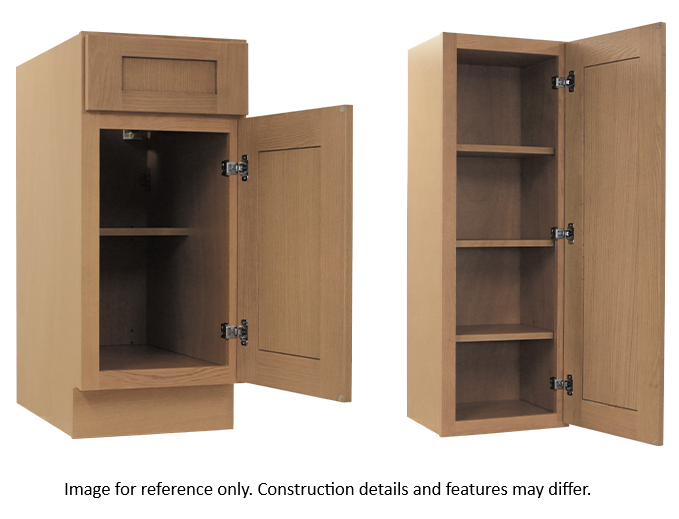

Cabinet construction	Sides, top, and bottom: 1/2" A-Grade plywood with wood veneer. Back panels may vary depending on the cabinet. Picture
Face frame	1-1/2" x 3/4" eucalyptus grandis. Framed or Frameless
Shelves	3/4" thick A-Grade plywood with wood veneer, adjustable. Clear plastic shelf pins.
Toe kick	1/2", color matches cabinet front.
Base corner supports	Wood corner brackets, with wood I-beam.
Center stile	No center stile on all wall and base cabinets up to 36" wide
Door and drawer stoppers	Clear adhesive bumpers. Picture
Hinge side	Hinges on single door wall, base, vanity, and pantry cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
CARB compliant	Yes About CARB compliance
Door frames	Approx. 3" wide

Base Cabinets
Door height	22-3/4"
Upper drawer front height	6-1/4"
Upper drawer box height	3-7/8"
Upper drawer box exterior depth (front to back)	Varies, call for more details
Shelf depth	12"
Toe kick height	4-1/2"
Toe kick depth	2-1/2" from the cabinet front
Cabinet height	34-1/2"

Drawer Base Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Upper drawer box exterior depth (front to back)	Varies, call for more details
Lower drawer fronts height	n/a
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	Same as the regular base cabinets, see above

Bathroom Vanity Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Door height	Same as the regular base cabinets, see above
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	34-1/2"

Wall Cabinets
Shelf depth	Full depth
Top and bottom panels finish	Matches cabinet front

Full Overlay Installation
Cabinets with full overlay doors have minimal clearance between the doors/drawers and cabinet edges. If a cabinet is positioned next to a wall or other surface (e.g. refrigerator panel), we recommend adding at least 1/4" additional clearance to allow doors and drawers operate smoothly. While 1/4" is the minimum recommended, some applications may require a greater clearance depending on hardware and other project requirements. It is recommended to use scribe moldings and wall/base fillers to bridge any resulting gaps. In general, additional spacing between standard cabinets is not necessary, except in specific situations - for example, when cabinets have different depths (e.g., a 12" deep wall cabinet next to a 24" deep pantry). In addition to the standard and additional clearance, adjust the hinge and drawer slide settings to achieve the desired door/drawer clearance and alignment. Hinge and drawer slide adjustments are typically required for all cabinets. See an example

About Specifications
Specifications are subject to change without notice. Certain dimensions are rounded. Lighting conditions and screen settings can affect color perception, so for the most accurate match, we recommend ordering product samples. In rare instances, manufacturers may substitute certain items with similar products of comparable, but not identical construction. The listed cabinet depth refers to the exterior measurement and does not include doors, drawers, stoppers, or clearance. Contact us with any questions about cabinet styles and specifications.

Assembly Information

Please check the assembly information below and instructions that come with cabinets.

Assembly Videos

PDF Assembly Information

Assembly may vary depending on an item and/or type. For more information, see assembly instructions that come with cabinets. Feel free to contact our support team with any questions.

Wall Cabinet Assembly

Wall Easy Reach Corner Cabinet Assembly (WSQ)

Base Cabinet Assembly (Including soft closing drawer slides)

Base Corner Cabinet Assembly

Base Microwave Cabinet Assembly

Base Transitional Cabinet Assembly

Pantry Cabinet Assembly

Bathroom Vanity Cabinet Assembly

B09 Cabinet Drawer

TCR Hardware

Installation Information

General Installation Information

If you believe your order is missing items, extra parts or not sure about something, feel free to contact one of our support agents.

Matching Cabinet Lines

The following cabinet lines have similar specifications and the same door profile.

Newport White Shaker

Newport Champagne Shaker

Newport Grey Shaker

Newport Blue Shaker

Newport Woodland Shaker

Newport Smoke Shaker

Newport Espresso Shaker

Newport Blaze Black Shaker

Newport Blaze Black Shaker Sample Square

Wood block cabinet color sample.
Approximate size: 6" wide x 6" high.

Special Price $2.99 Regular Price $9.97
x
Newport Blaze Black Shaker Sample

Approximate door size: 14-5/8" wide x 14-1/4" high.
Available as ready to assemble.

Special Price $15.99 Regular Price $53.30
x
W0930 Newport Blaze Black Shaker RTA
Width: 9"
Height: 30"
Depth: 12"

Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $164.07 Regular Price $273.45
x
W1230 Newport Blaze Black Shaker RTA
Width: 12"
Height: 30"
Depth: 12"

Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $181.75 Regular Price $302.91
x
W1530 Newport Blaze Black Shaker RTA
Width: 15"
Height: 30"
Depth: 12"

Wall cabinet with 1 door and 2 shelves.

Special Price $198.28 Regular Price $330.46
x
W1830 Newport Blaze Black Shaker RTA
Width: 18"
Height: 30"
Depth: 12"

Wall cabinet with 1 door and 2 shelves.

Special Price $219.50 Regular Price $365.83
x
W2130 Newport Blaze Black Shaker RTA
Width: 21"
Height: 30"
Depth: 12"

Wall cabinet with 1 door and 2 shelves.

Special Price $264.36 Regular Price $440.60
x
W2430 Newport Blaze Black Shaker RTA
Width: 24"
Height: 30"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves.

Special Price $284.44 Regular Price $474.06
x
W2730 Newport Blaze Black Shaker RTA
Width: 27"
Height: 30"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves.

Special Price $310.41 Regular Price $517.35
x
W3030 Newport Blaze Black Shaker RTA
Width: 30"
Height: 30"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $321.00 Regular Price $535.00
x
W3330 Newport Blaze Black Shaker RTA
Width: 33"
Height: 30"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves.

Special Price $344.62 Regular Price $574.37
x
W3630 Newport Blaze Black Shaker RTA
Width: 36"
Height: 30"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $368.21 Regular Price $613.69
x
W0936 Newport Blaze Black Shaker RTA
Width: 9"
Height: 36"
Depth: 12"

Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $207.73 Regular Price $346.22
x
W1236 Newport Blaze Black Shaker RTA
Width: 12"
Height: 36"
Depth: 12"

Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $219.50 Regular Price $365.83
x
W1536 Newport Blaze Black Shaker RTA
Width: 15"
Height: 36"
Depth: 12"

Wall cabinet with 1 door and 2 shelves.

Special Price $238.40 Regular Price $397.34
x
W1836 Newport Blaze Black Shaker RTA
Width: 18"
Height: 36"
Depth: 12"

Wall cabinet with 1 door and 2 shelves.

Special Price $264.36 Regular Price $440.60
x
W2136 Newport Blaze Black Shaker RTA
Width: 21"
Height: 36"
Depth: 12"

Wall cabinet with 1 door and 2 shelves.

Special Price $316.31 Regular Price $527.18
x
W2436 Newport Blaze Black Shaker RTA
Width: 24"
Height: 36"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves.

Special Price $338.72 Regular Price $564.54
x
W2736 Newport Blaze Black Shaker RTA
Width: 27"
Height: 36"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves.

Special Price $383.57 Regular Price $639.28
x
W3036 Newport Blaze Black Shaker RTA
Width: 30"
Height: 36"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $414.24 Regular Price $690.40
x
W3336 Newport Blaze Black Shaker RTA
Width: 33"
Height: 36"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves.

Special Price $440.21 Regular Price $733.69
x
W3636 Newport Blaze Black Shaker RTA
Width: 36"
Height: 36"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $460.28 Regular Price $767.14
x
W0942 Newport Blaze Black Shaker RTA
Width: 9"
Height: 42"
Depth: 12"

Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $228.98 Regular Price $381.63
x
W1242 Newport Blaze Black Shaker RTA
Width: 12"
Height: 42"
Depth: 12"

Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $241.94 Regular Price $403.24
x
W1542 Newport Blaze Black Shaker RTA
Width: 15"
Height: 42"
Depth: 12"

Wall cabinet with 1 door and 3 shelves.

Special Price $263.20 Regular Price $438.66
x
W1842 Newport Blaze Black Shaker RTA
Width: 18"
Height: 42"
Depth: 12"

Wall cabinet with 1 door and 3 shelves.

Special Price $292.67 Regular Price $487.79
x
W2142 Newport Blaze Black Shaker RTA
Width: 21"
Height: 42"
Depth: 12"

Wall cabinet with 1 door and 3 shelves.

Special Price $351.71 Regular Price $586.18
x
W2442 Newport Blaze Black Shaker RTA
Width: 24"
Height: 42"
Depth: 12"

Wall cabinet with 2 doors and 3 shelves.

Special Price $378.84 Regular Price $631.40
x
W2742 Newport Blaze Black Shaker RTA
Width: 27"
Height: 42"
Depth: 12"

Wall cabinet with 2 doors and 3 shelves.

Special Price $442.57 Regular Price $737.62
x
W3042 Newport Blaze Black ShakerRTA
Width: 30"
Height: 42"
Depth: 12"

Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $489.79 Regular Price $816.32
x
W3342 Newport Blaze Black Shaker RTA
Width: 33"
Height: 42"
Depth: 12"

Wall cabinet with 2 doors and 3 shelves.

Special Price $515.74 Regular Price $859.56
x
W3642 Newport Blaze Black Shaker RTA
Width: 36"
Height: 42"
Depth: 12"

Wall cabinet with 2 doors and 3 shelves.

Special Price $549.96 Regular Price $916.60
x
W3012 Newport Blaze Black Shaker RTA
Width: 30"
Height: 12"
Depth: 12"

Wall cabinet with 2 doors.

Special Price $184.12 Regular Price $306.87
x
W3312 Newport Blaze Black Shaker RTA
Width: 33"
Height: 12"
Depth: 12"

Wall cabinet with 2 doors.

Special Price $196.62 Regular Price $327.70
x
W3612 Newport Blaze Black Shaker RTA
Width: 36"
Height: 12"
Depth: 12"

Wall cabinet with 2 doors.

Special Price $206.53 Regular Price $344.21
x
W2415 Newport Blaze Black Shaker RTA
Width: 24"
Height: 15"
Depth: 12"

Wall cabinet with 2 doors.

Special Price $184.12 Regular Price $306.87
x
W3015 Newport Blaze Black Shaker RTA
Width: 30"
Height: 15"
Depth: 12"

Wall cabinet with 2 doors.

Special Price $206.53 Regular Price $344.21
x
W3315 Newport Blaze Black Shaker RTA
Width: 33"
Height: 15"
Depth: 12"

Wall cabinet with 2 doors.

Special Price $224.24 Regular Price $373.74
x
W3615 Newport Blaze Black Shaker RTA
Width: 36"
Height: 15"
Depth: 12"

Wall cabinet with 2 doors.

Special Price $227.78 Regular Price $379.63
x
W2418 Newport Blaze Black Shaker RTA
Width: 24"
Height: 18"
Depth: 12"

Wall cabinet with 2 doors.

Special Price $198.28 Regular Price $330.46
x
W3018 Newport Blaze Black Shaker RTA
Width: 30"
Height: 18"
Depth: 12"

Wall cabinet with 2 doors.

Special Price $227.78 Regular Price $379.63
x
W3318 Newport Blaze Black Shaker RTA
Width: 33"
Height: 18"
Depth: 12"

Wall cabinet with 2 doors.

Special Price $241.94 Regular Price $403.24
x
W3618 Newport Blaze Black Shaker RTA
Width: 36"
Height: 18"
Depth: 12"

Wall cabinet with 2 doors.

Special Price $258.48 Regular Price $430.80
x
W2424 Newport Blaze Black Shaker RTA
Width: 24"
Height: 24"
Depth: 12"

Wall cabinet with 2 doors and 1 shelf.

Special Price $254.92 Regular Price $424.87
x
W3024 Newport Blaze Black Shaker RTA
Width: 30"
Height: 24"
Depth: 12"

Wall cabinet with 2 doors and 1 shelf.

Special Price $285.61 Regular Price $476.01
x
W3324 Newport Blaze Black Shaker RTA
Width: 33"
Height: 24"
Depth: 12"

Wall cabinet with 2 doors and 1 shelf.

Special Price $305.67 Regular Price $509.45
x
W3624 Newport Blaze Black Shaker RTA
Width: 36"
Height: 24"
Depth: 12"

Wall cabinet with 2 doors and 1 shelf.

Special Price $326.92 Regular Price $544.86
x
RW3612 Newport Blaze Black Shaker RTA
Width: 36"
Height: 12"
Depth: 24"

Refrigerator wall cabinet with 2 doors.

Special Price $279.71 Regular Price $466.19
x
RW3015 Newport Blaze Black Shaker RTA
Width: 30"
Height: 15"
Depth: 24"

Refrigerator wall cabinet with 2 doors.

Special Price $280.88 Regular Price $468.14
x
RW3315 Newport Blaze Black Shaker RTA
Width: 33"
Height: 15"
Depth: 24"

Refrigerator wall cabinet with 2 doors.

Special Price $295.06 Regular Price $491.76
x
RW3615 Newport Blaze Black Shaker RTA
Width: 36"
Height: 15"
Depth: 24"

Refrigerator wall cabinet with 2 doors.

Special Price $310.41 Regular Price $517.35
x
RW3018 Newport Blaze Black Shaker RTA
Width: 30"
Height: 18"
Depth: 24"

Refrigerator wall cabinet with 2 doors.

Special Price $344.62 Regular Price $574.37
x
RW3318 Newport Blaze Black Shaker RTA
Width: 33"
Height: 18"
Depth: 24"

Refrigerator wall cabinet with 2 doors.

Special Price $348.17 Regular Price $580.28
x
RW3618 Newport Blaze Black Shaker RTA
Width: 36"
Height: 18"
Depth: 24"

Refrigerator wall cabinet with 2 doors.

Special Price $351.71 Regular Price $586.18
x
RW3024 Newport Blaze Black Shaker RTA
Width: 30"
Height: 24"
Depth: 24"

Refrigerator wall cabinet with 2 doors and 1 shelf.

Special Price $337.52 Regular Price $562.54
x
RW3324 Newport Blaze Black Shaker RTA
Width: 33"
Height: 24"
Depth: 24"

Refrigerator wall cabinet with 2 doors and 1 shelf. This cabinet can be modified into a farmhouse sink base cabinet.

Special Price $359.99 Regular Price $599.99
x
RW3624 Newport Blaze Black Shaker RTA
Width: 36"
Height: 24"
Depth: 24"

Refrigerator wall cabinet with 2 doors and 1 shelf.

Special Price $381.22 Regular Price $635.36
x
WDC2412 Newport Blaze Black Shaker RTA
Width: 24"
Height: 12"
Depth: 12"

Diagonal wall corner cabinet with 1 door. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.

Special Price $188.06 Regular Price $313.43
x
WDC2430 Newport Blaze Black Shaker RTA
Width: 24"
Height: 30"
Depth: 12"

Diagonal wall corner cabinet with 1 door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.

Special Price $409.54 Regular Price $682.56
x
WDC2436 Newport Blaze Black Shaker RTA
Width: 24"
Height: 36"
Depth: 12"

Diagonal wall corner cabinet with 1 door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.

Special Price $512.21 Regular Price $853.68
x
WDC2442 Newport Blaze Black Shaker RTA
Width: 24"
Height: 42"
Depth: 12"

Diagonal wall corner cabinet with 1 door and 3 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.

Special Price $544.06 Regular Price $906.76
x
WDC273615 Newport Blaze Black Shaker RTA
Width: 27"
Height: 36"
Depth: 15"

Diagonal wall corner cabinet with 1 door and 2 shelves. This cabinet takes up 27" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets. See the product page for more details.

Special Price $774.18 Regular Price $1,290.30
x
WDC274215 Newport Blaze Black Shaker RTA
Width: 27"
Height: 42"
Depth: 15"

Diagonal wall corner cabinet with 1 door and 3 shelves. This cabinet takes up 27" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets. See the product page for more details.

Special Price $925.25 Regular Price $1,542.08
x
WSQ2430 Newport Blaze Black Shaker RTA
Width: 24"
Height: 30"
Depth: 12"

Wall corner cabinet with a bi-fold door and 2 shelves. This cabinet takes up 24" of space on each side of the corner.

Special Price $627.86 Regular Price $1,046.44
x
WSQ2436 Newport Blaze Black Shaker RTA
Width: 24"
Height: 36"
Depth: 12"

Wall corner cabinet with a bi-fold door and 2 shelves. This cabinet takes up 24" of space on each side of the corner.

Special Price $754.10 Regular Price $1,256.83
x
WSQ2442 Newport Blaze Black Shaker RTA
Width: 24"
Height: 42"
Depth: 12"

Wall corner cabinet with a bi-fold door and 3 shelves. This cabinet takes up 24" of space on each side of the corner.

Special Price $905.17 Regular Price $1,508.62
x
WBLC3030 Newport Blaze Black Shaker RTA
Width: 30"
Height: 30"
Depth: 12"

Wall blind corner cabinet with 1 door and 2 shelves. This cabinet will be provided as a W3030 cabinet and WF630 filler. The filler will be used as a center stile, it will need to be mounted on-site. This cabinet takes up more space than its width, the recommended space is 30"-33". It can be used as left or right. The door section is 11-3/16" wide. The cabinet will come with two doors, but you will need to remove the one door during assembly. Afterward, you will install a 6" filler in the center of the cabinet to serve as the stile. The filler will be included. See the product page for an installation diagram example.

Special Price $381.20 Regular Price $635.33
x
WBLC3036 Newport Blaze Black Shaker RTA
Width: 30"
Height: 36"
Depth: 12"

Wall blind corner cabinet with 1 door and 2 shelves. This cabinet will be provided as a W3036 cabinet and WF642 filler. The filler will be used as a center stile, it will need to be mounted on-site. This cabinet takes up more space than its width, the recommended space is 30"-33". It can be used as left or right. The door section is 11-3/16" wide. The cabinet will come with two doors, but you will need to remove the one door during assembly. Afterward, you will install a 6" filler in the center of the cabinet to serve as the stile. The filler will be included. See the product page for an installation diagram example.

Special Price $501.59 Regular Price $835.99
x
WBLC3042 Newport Blaze Black Shaker RTA
Width: 30"
Height: 42"
Depth: 12"

Wall blind corner cabinet with 1 door and 3 shelves. This cabinet will be provided as a W3042 cabinet and WF642 filler. The filler will be used as a center stile, it will need to be mounted on-site. This cabinet takes up more space than its width, the recommended space is 30"-33". It can be used as left or right. The door section is 11-3/16" wide. The cabinet will come with two doors, but you will need to remove the one door during assembly. Afterward, you will install a 6" filler in the center of the cabinet to serve as the stile. The filler will be included. See the product page for an installation diagram example.

Special Price $577.15 Regular Price $961.92
x
AW30 Newport Blaze Black Shaker RTA
Width: 12"
Height: 30"
Depth: 12"

Wall end angle cabinet with 1 door and 2 shelves. The door is 16-7/16" wide. It can be used as left or right.

Special Price $338.32 Regular Price $563.86
x
AW36 Newport Blaze Black Shaker RTA
Width: 12"
Height: 36"
Depth: 12"

Wall end angle cabinet with 1 door and 2 shelves. The door is 16-7/16" wide. It can be used as left or right.

Special Price $405.42 Regular Price $675.70
x
AW42 Newport Blaze Black Shaker RTA
Width: 12"
Height: 42"
Depth: 12"

Wall end angle cabinet with 1 door and 3 shelves. The door is 16-7/16" wide. It can be used as left or right

Special Price $473.90 Regular Price $789.83
x
WES0530 Newport Blaze Black Shaker RTA
Width: 5"
Height: 30"
Depth: 11 1/2"

Wall end shelf cabinet with 2 shelves. This cabinet takes up 5" of wall space. It can be used as left or right.

Special Price $119.21 Regular Price $198.68
x
WES0536 Newport Blaze Black Shaker RTA
Width: 5"
Height: 36"
Depth: 11 1/2"

Wall end shelf cabinet with 2 shelves. This cabinet takes up 5" of wall space. It can be used as left or right.

Special Price $142.82 Regular Price $238.03
x
WES0542 Newport Blaze Black Shaker RTA
Width: 5"
Height: 42"
Depth: 11 1/2"

Wall end shelf cabinet with 3 shelves. This cabinet takes up 5" of wall space. It can be used as left or right.

Special Price $168.77 Regular Price $281.28
x
MW3018 Newport Blaze Black Shaker RTA
Width: 30"
Height: 18"
Depth: 12"

Wall microwave cabinet. The microwave opening is 26-7/8" wide x 14-1/8" high.

Special Price $221.87 Regular Price $369.79
x
WR3018 Newport Blaze Black Shaker RTA
Width: 30"
Height: 18"
Depth: 12"

Wine rack cabinet. This cabinet holds 18 bottles.

Special Price $260.83 Regular Price $434.72
x
W2D1848 Newport Blaze Black Shaker RTA
Width: 18"
Height: 48"
Depth: 12"

Wall cabinet with 1 door, 2 drawers, and 2 shelves.

Special Price $498.05 Regular Price $830.09
x
W2D1854 Newport Blaze Black Shaker RTA
Width: 18"
Height: 54"
Depth: 12"

Wall cabinet with 1 door, 2 drawers, and 2 shelves.

Special Price $580.66 Regular Price $967.77
x
W2D1860 Newport Blaze Black Shaker RTA
Width: 18"
Height: 60"
Depth: 12"

Wall cabinet with 1 door, 2 drawers, and 3 shelves.

Special Price $663.26 Regular Price $1,105.43
x
WC630 Newport Blaze Black Shaker RTA
Width: 6"
Height: 30"
Depth: 12"

Wall cubes cabinet with 5 cubes.

Special Price $200.63 Regular Price $334.39
x
WC636 Newport Blaze Black Shaker RTA
Width: 6"
Height: 36"
Depth: 12"

Wall cubes cabinet with 6 cubes.

Special Price $236.06 Regular Price $393.44
x
WC642 Newport Blaze Black Shaker RTA
Width: 6"
Height: 42"
Depth: 12"

Wall cubes cabinet with 7 cubes.

Special Price $271.45 Regular Price $452.42
x
CWH36 Newport Blaze Black Shaker RTA
Width: 38 3/8"
Height: 52"
Depth: 20 1/2"

Trimmable range hood cover. True width 38-3/8". See the product page for more information.

Special Price $808.51 Regular Price $1,347.52
x
EWH36 Newport Blaze Black Shaker RTA
Width: 37 3/4"
Height: 46"
Depth: 19 7/8"

Trimmable range hood. True width 37-3/4". See the product page for more information.

Special Price $1,073.26 Regular Price $1,788.76
x
BFP9 Newport Blaze Black Shaker RTA
Width: 9"
Height: 34 1/2"
Depth: 24"

Base spice cabinet. This cabinet comes with standard (not soft closing) drawer slides.

Special Price $656.18 Regular Price $1,093.64
x
B9 Newport Blaze Black Shaker RTA
Width: 9"
Height: 34 1/2"
Depth: 24"

Base cabinet with 1 door, 1 drawer, and 1 shelf.

Special Price $277.34 Regular Price $462.23
x
B12 Newport Blaze Black Shaker RTA
Width: 12"
Height: 34 1/2"
Depth: 24"

Base cabinet with 1 door, 1 drawer, and 1 shelf.

Special Price $312.77 Regular Price $521.28
x
B15 Newport Blaze Black Shaker RTA
Width: 15"
Height: 34 1/2"
Depth: 24"

Base cabinet with 1 door, 1 drawer, and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The waste container pullout hardware is available in the Cabinet Organizers section.

Special Price $325.73 Regular Price $542.88
x
B18 Newport Blaze Black Shaker RTA
Width: 18"
Height: 34 1/2"
Depth: 24"

Base cabinet with 1 door, 1 drawer, and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The waste container pullout hardware is available in the Cabinet Organizers section.

Special Price $341.10 Regular Price $568.50
x
B21 Newport Blaze Black Shaker RTA
Width: 21"
Height: 34 1/2"
Depth: 24"

Base cabinet with 1 door, 1 drawer, and 1 shelf.

Special Price $384.74 Regular Price $641.24
x
FB09 Newport Blaze Black Shaker RTA
Width: 9"
Height: 34 1/2"
Depth: 24"

Base cabinet with 1 full height door and 2 shelves.

Special Price $264.38 Regular Price $440.63
x
FB12 Newport Blaze Black Shaker RTA
Width: 12"
Height: 34 1/2"
Depth: 24"

Base cabinet with 1 full height door and 2 shelves.

Special Price $298.21 Regular Price $497.02
x
FB15 Newport Blaze Black Shaker RTA
Width: 15"
Height: 34 1/2"
Depth: 24"

Base cabinet with 1 full height door and 2 shelves.

Special Price $310.76 Regular Price $517.93
x
FB18 Newport Blaze Black Shaker RTA
Width: 18"
Height: 34 1/2"
Depth: 24"

Base cabinet with 1 full height door and 2 shelves.

Special Price $326.15 Regular Price $543.58
x
B24 Newport Blaze Black Shaker RTA
Width: 24"
Height: 34 1/2"
Depth: 24"

Base cabinet with 2 doors, 1 drawer, and 1 shelf.

Special Price $413.06 Regular Price $688.44
x
B27 Newport Blaze Black Shaker RTA
Width: 27"
Height: 34 1/2"
Depth: 24"

Base cabinet with 2 doors, 1 drawer, and 1 shelf.

Special Price $444.94 Regular Price $741.56
x
B30 Newport Blaze Black Shaker RTA
Width: 30"
Height: 34 1/2"
Depth: 24"

Base cabinet with 2 doors, 1 drawer, and 1 shelf.

Special Price $524.00 Regular Price $873.33
x
B33 Newport Blaze Black Shaker RTA
Width: 33"
Height: 34 1/2"
Depth: 24"

Base cabinet with 2 doors, 2 drawers, and 1 shelf.

Special Price $547.62 Regular Price $912.70
x
B36 Newport Blaze Black Shaker RTA
Width: 36"
Height: 34 1/2"
Depth: 24"

Base cabinet with 2 doors, 2 drawers, and 1 shelf.

Special Price $570.01 Regular Price $950.02
x

Newport Blaze Black Shaker - Ready to Assemble Kitchen Cabinets

Cabinet Specifications

Assembly Videos

PDF Assembly Information

Installation Information

Matching Cabinet Lines
