Malibu Kona is a premium kitchen cabinet line that offers full overlay doors, dovetail drawer boxes, high quality all wood construction, semi-custom cabinets, and more! Malibu Kona will be an excellent choice for your next renovation project if you are looking for functional and beautiful kitchen.
Best price guarantee
We are confident you get the best deal possible with us. All our cabinets are backed by the 90 Day Best Price Guarantee. If you find the same product from another retailer for less, we will beat the competitor price even after you placed the order with us. See full details and limitations.
Shipping time
Malibu Kona pre-assembled cabinets leave the warehouse in 2-3 weeks after placing an order. Standard transit time after shipping is 2-6 business days.
The product specifications, including sizes, parts, height, width, and more, are provided below. Please note that these details may differ based on the specific product line.
General specifications
Color & finish
Brown stain

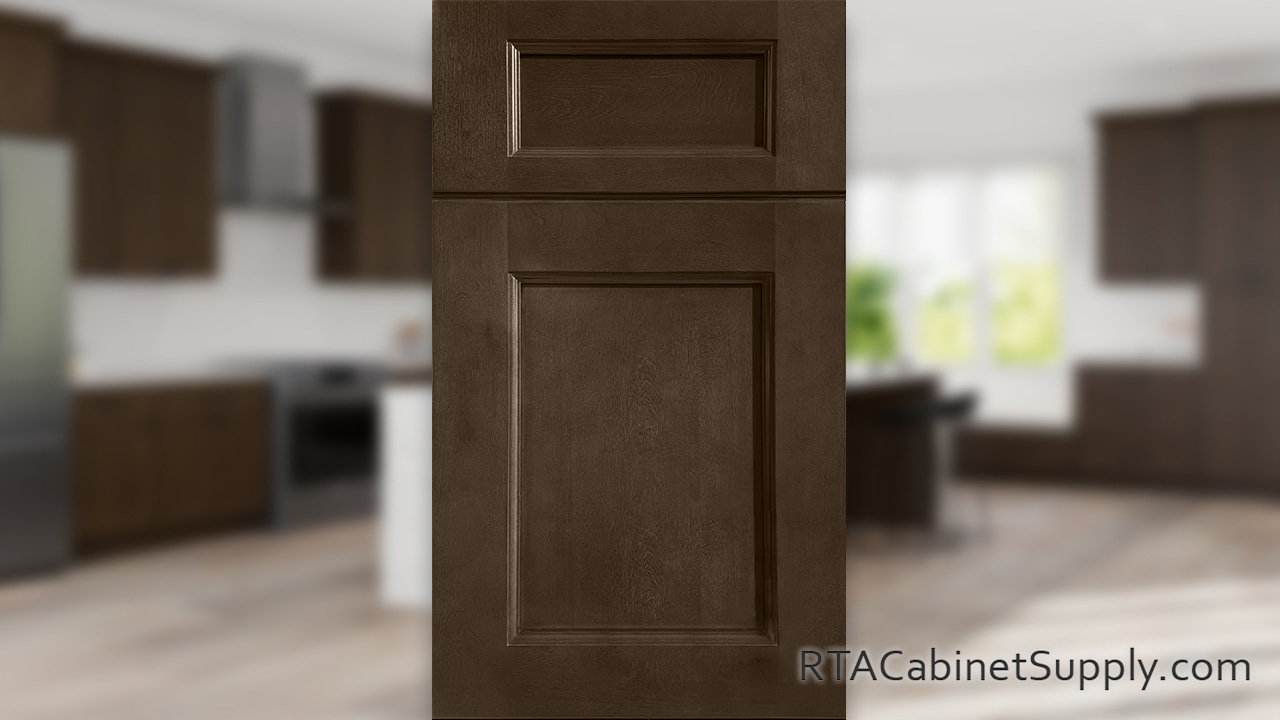

Door profile
Recessed panel
Sides color
Cabinet sides are unfinished, finishing skins are required for exposed sides.

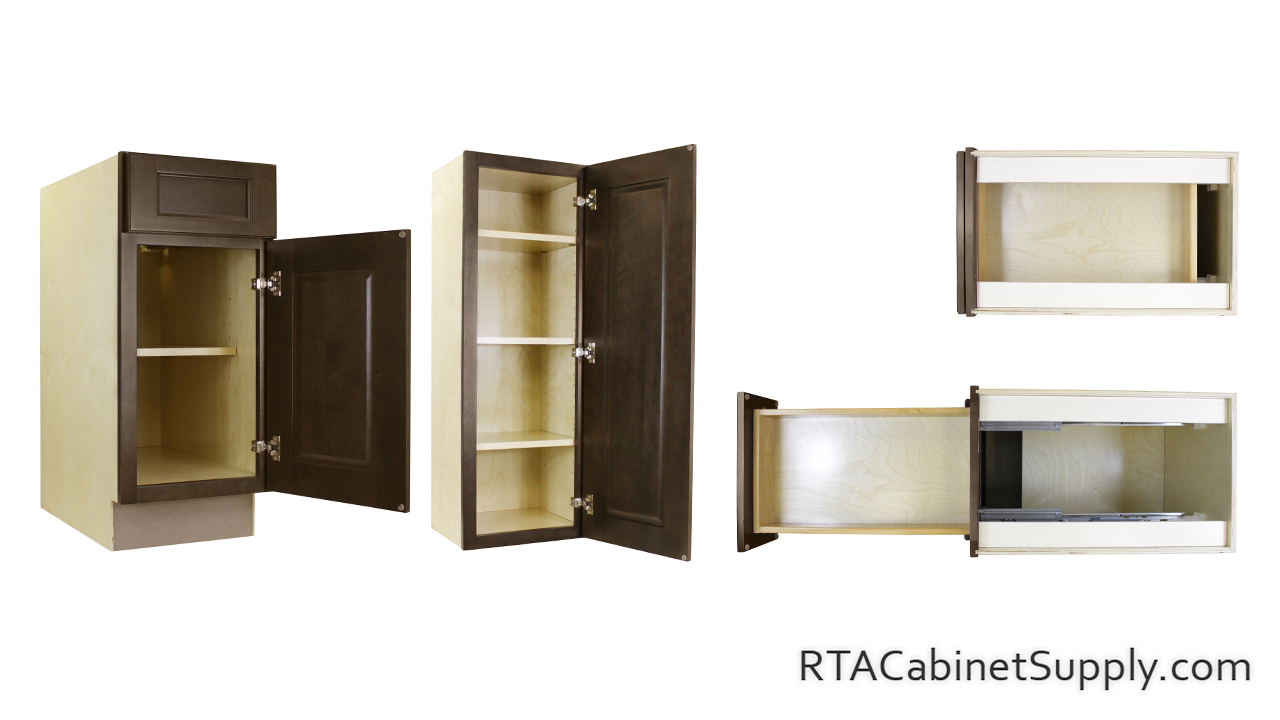

Drawers
Tandem plus Blumotion soft closing, under mount, full extension, 4 way adjustable. ⅝” solid wood dovetail drawer box with a ⅜” plywood bottom panel, natural color finish. VideoPicture
Door hinges
Blumotion euro-style, dual mode, soft closing, concealed, 6 way adjustable. The soft closing mode can be turned on or off. Hinges open at 110°. Compact Clip Hinges with Quick-Release technology. Video
Interior color
Clear coated natural wood color. Glass door and no door cabinets come with a matching (same as cabinet front) interior color.
Doors
3/4" thick solid wood door and drawer front frame. Center panel is MDF (Medium Density Fiber Board) with wood veneer. Doors and drawer fronts are 5-piece construction. Why do we use MDF?
Cabinet construction
½" unfinished plywood side panels dovetailed into face frame. ½" thick veneered plywood back with a natural finished interior. See interior color section for information on interior finish.
Face frame
1-1/2" wide x 3/4" thick solid wood
Shelves
3/4" (18mm) veneered plywood adjustable shelving with matching wood veneer edge banding. Metal shelf pins.
Toe kick
¾" thick unfinished plywood toe kick. Matching ¼" toe kick cover to be ordered separately.
Base corner supports
Plywood strips
Center stile
No center stile on cabinets up to 36" wide
Hinge side
Hinges on single door wall, base, vanity, and pantry cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
Cabinets with full overlay doors have minimal clearance between the doors/drawers and cabinet edges. If a cabinet is positioned next to a wall or other surface (e.g. refrigerator panel), we recommend adding at least 1/4" additional clearance to allow doors and drawers operate smoothly. While 1/4" is the minimum recommended, some applications may require a greater clearance depending on hardware and other project requirements. It is recommended to use scribe moldings and wall/base fillers to bridge any resulting gaps. In general, additional spacing between standard cabinets is not necessary, except in specific situations - for example, when cabinets have different depths (e.g., a 12" deep wall cabinet next to a 24" deep pantry). In addition to the standard and additional clearance, adjust the hinge and drawer slide settings to achieve the desired door/drawer clearance and alignment. Hinge and drawer slide adjustments are typically required for all cabinets. See an example
About Specifications

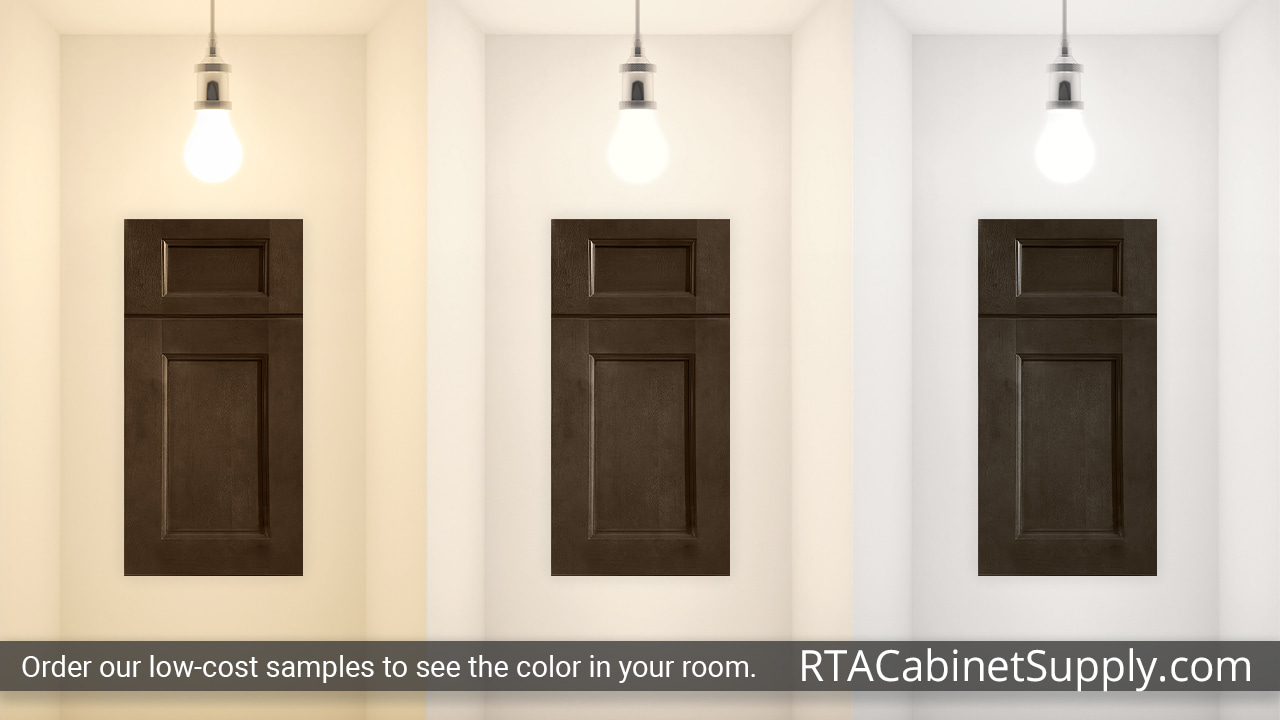

Specifications are subject to change without notice. Certain dimensions are rounded. Lighting conditions and screen settings can affect color perception, so for the most accurate match, we recommend ordering product samples. In rare instances, manufacturers may substitute certain items with similar products of comparable, but not identical construction. The listed cabinet depth refers to the exterior measurement and does not include doors, drawers, stoppers, or clearance. Contact us with any questions about cabinet styles and specifications.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Diagonal wall corner cabinet with 2 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.
Diagonal wall corner cabinet with 2 shelves. This cabinet takes up 27" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets.
Diagonal wall corner cabinet with 3 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.
Diagonal wall corner cabinet with 3 shelves. This cabinet takes up 27" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets.
Diagonal wall corner cabinet with 3 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.
Diagonal wall corner cabinet with 3 shelves. This cabinet takes up 27" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets.
Wall blind corner cabinet with 2 shelves. This cabinet takes up more space than its width, the recommended space is 27". It can be used as left or right, requires a wall filler (not included). The door section is 9-1/2" wide. The stile width is 7". Opening is 7" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 27". It can be used as left or right, requires a wall filler (not included). The door section is 9-1/2" wide. The stile width is 7". Opening is 7" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 27". It can be used as left or right, requires a wall filler (not included). The door section is 9-1/2" wide. The stile width is 7". Opening is 7" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 2 shelves. This cabinet takes up more space than its width, the recommended space is 33". It can be used as left or right, requires a wall filler (not included). The door section is 14-3/4" wide. The stile width is 7-3/4". Opening is 12-1/4" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 33". It can be used as left or right, requires a wall filler (not included). The door section is 14-3/4" wide. The stile width is 7-3/4". Opening is 12-1/4" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 33". It can be used as left or right, requires a wall filler (not included). The door section is 14-3/4" wide. The stile width is 7-3/4". Opening is 12-1/4" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 2 shelves. This cabinet takes up more space than its width, the recommended space is 39". It can be used as left or right, requires a wall filler (not included). The door section is 21 1/2" wide. The stile width is 7". Opening is 19" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 39". It can be used as left or right, requires a wall filler (not included). The door section is 21 1/2" wide. The stile width is 7". Opening is 19" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 39". It can be used as left or right, requires a wall filler (not included). The door section is 21 1/2" wide. The stile width is 7". Opening is 19" wide. See the product page for an installation diagram example.
W0930 Malibu Kona Pre-AssembledOptionsWidth: 9"Height: 30"Depth: 12"Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
W1230 Malibu Kona Pre-AssembledOptionsWidth: 12"Height: 30"Depth: 12"Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
W1530 Malibu Kona Pre-AssembledOptionsWidth: 15"Height: 30"Depth: 12"Wall cabinet with 1 door and 2 shelves.
W1830 Malibu Kona Pre-AssembledOptionsWidth: 18"Height: 30"Depth: 12"Wall cabinet with 1 door and 2 shelves.
W2130 Malibu Kona Pre-AssembledOptionsWidth: 21"Height: 30"Depth: 12"Wall cabinet with 1 door and 2 shelves.
W2430 Malibu Kona Pre-AssembledOptionsWidth: 24"Height: 30"Depth: 12"Wall cabinet with 2 doors and 2 shelves.
W2730 Malibu Kona Pre-AssembledOptionsWidth: 27"Height: 30"Depth: 12"Wall cabinet with 2 doors and 2 shelves.
W3030 Malibu Kona Pre-AssembledOptionsWidth: 30"Height: 30"Depth: 12"Wall cabinet with 2 doors and 2 shelves.
W3330 Malibu Kona Pre-AssembledOptionsWidth: 33"Height: 30"Depth: 12"Wall cabinet with 2 doors and 2 shelves.
W3630 Malibu Kona Pre-AssembledOptionsWidth: 36"Height: 30"Depth: 12"Wall cabinet with 2 doors and 2 shelves.
W3930 Malibu Kona Pre-AssembledOptionsWidth: 39"Height: 30"Depth: 12"Wall cabinet with 2 doors and 2 shelves. This cabinet has 1-1/2" center stile.
W0936 Malibu Kona Pre-AssembledOptionsWidth: 9"Height: 36"Depth: 12"Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
W1236 Malibu Kona Pre-AssembledOptionsWidth: 12"Height: 36"Depth: 12"Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
W1536 Malibu Kona Pre-AssembledOptionsWidth: 15"Height: 36"Depth: 12"Wall cabinet with 1 door and 3 shelves.
W1836 Malibu Kona Pre-AssembledOptionsWidth: 18"Height: 36"Depth: 12"Wall cabinet with 1 door and 3 shelves.
W2136 Malibu Kona Pre-AssembledOptionsWidth: 21"Height: 36"Depth: 12"Wall cabinet with 1 door and 3 shelves.
W2436 Malibu Kona Pre-AssembledOptionsWidth: 24"Height: 36"Depth: 12"Wall cabinet with 2 doors and 3 shelves.
W2736 Malibu Kona Pre-AssembledOptionsWidth: 27"Height: 36"Depth: 12"Wall cabinet with 2 doors and 3 shelves.
W3036 Malibu Kona Pre-AssembledOptionsWidth: 30"Height: 36"Depth: 12"Wall cabinet with 2 doors and 3 shelves.
W3336 Malibu Kona Pre-AssembledOptionsWidth: 33"Height: 36"Depth: 12"Wall cabinet with 2 doors and 3 shelves.
W3636 Malibu Kona Pre-AssembledOptionsWidth: 36"Height: 36"Depth: 12"Wall cabinet with 2 doors and 3 shelves.
W3936 Malibu Kona Pre-AssembledOptionsWidth: 39"Height: 36"Depth: 12"Wall cabinet with 2 doors and 3 shelves. This cabinet has 1-1/2" center stile.
W0942 Malibu Kona Pre-AssembledOptionsWidth: 9"Height: 42"Depth: 12"Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
W1242 Malibu Kona Pre-AssembledOptionsWidth: 12"Height: 42"Depth: 12"Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
W1542 Malibu Kona Pre-AssembledOptionsWidth: 15"Height: 42"Depth: 12"Wall cabinet with 1 door and 3 shelves.
W1842 Malibu Kona Pre-AssembledOptionsWidth: 18"Height: 42"Depth: 12"Wall cabinet with 1 door and 3 shelves.
W2142 Malibu Kona Pre-AssembledOptionsWidth: 21"Height: 42"Depth: 12"Wall cabinet with 1 door and 3 shelves.
W2442 Malibu Kona Pre-AssembledOptionsWidth: 24"Height: 42"Depth: 12"Wall cabinet with 2 doors and 3 shelves.
W2742 Malibu Kona Pre-AssembledOptionsWidth: 27"Height: 42"Depth: 12"Wall cabinet with 2 doors and 3 shelves.
W3042 Malibu Kona Pre-AssembledOptionsWidth: 30"Height: 42"Depth: 12"Wall cabinet with 2 doors and 3 shelves.
W3342 Malibu Kona Pre-AssembledOptionsWidth: 33"Height: 42"Depth: 12"Wall cabinet with 2 doors and 3 shelves.
W3642 Malibu Kona Pre-AssembledOptionsWidth: 36"Height: 42"Depth: 12"Wall cabinet with 2 doors and 3 shelves.
W3942 Malibu Kona Pre-AssembledOptionsWidth: 39"Height: 42"Depth: 12"Wall cabinet with 2 doors and 3 shelves. This cabinet has 1-1/2" center stile.
W3021 Malibu Kona Pre-AssembledWidth: 30"Height: 21"Depth: 12"Wall cabinet with 2 doors and 1 shelf.
W2424 Malibu Kona Pre-AssembledWidth: 24"Height: 24"Depth: 12"Wall cabinet with 2 doors and 1 shelf.
W3024 Malibu Kona Pre-AssembledWidth: 30"Height: 24"Depth: 12"Wall cabinet with 2 doors and 1 shelf.
W3324 Malibu Kona Pre-AssembledWidth: 33"Height: 24"Depth: 12"Wall cabinet with 2 doors and 1 shelf.
W3624 Malibu Kona Pre-AssembledWidth: 36"Height: 24"Depth: 12"Wall cabinet with 2 doors and 1 shelf.
W302424 Malibu Kona Pre-AssembledWidth: 30"Height: 24"Depth: 24"Wall cabinet with 2 doors and 1 shelf.
W332424 Malibu Kona Pre-AssembledWidth: 33"Height: 24"Depth: 24"Wall cabinet with 2 doors and 1 shelf.
W362424 Malibu Kona Pre-AssembledWidth: 36"Height: 24"Depth: 24"Wall cabinet with 2 doors and 1 shelf.
WDC2415 Malibu Kona Pre-AssembledWidth: 24"Height: 15"Depth: 12"Diagonal wall corner cabinet. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.
WDC2418 Malibu Kona Pre-AssembledWidth: 24"Height: 18"Depth: 12"Diagonal wall corner cabinet. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.
WDC2430 Malibu Kona Pre-AssembledOptionsWidth: 24"Height: 30"Depth: 12"Diagonal wall corner cabinet with 2 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.
WDC273015 Malibu Kona Pre-AssembledWidth: 27"Height: 30"Depth: 15"Diagonal wall corner cabinet with 2 shelves. This cabinet takes up 27" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets.
WDC2436 Malibu Kona Pre-AssembledOptionsWidth: 24"Height: 36"Depth: 12"Diagonal wall corner cabinet with 3 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.
WDC273615 Malibu Kona Pre-AssembledWidth: 27"Height: 36"Depth: 15"Diagonal wall corner cabinet with 3 shelves. This cabinet takes up 27" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets.
WDC2442 Malibu Kona Pre-AssembledOptionsWidth: 24"Height: 42"Depth: 12"Diagonal wall corner cabinet with 3 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.
WDC274215 Malibu Kona Pre-AssembledWidth: 27"Height: 42"Depth: 15"Diagonal wall corner cabinet with 3 shelves. This cabinet takes up 27" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets.
WBC2430 Malibu Kona Pre-AssembledOptionsWidth: 24"Height: 30"Depth: 12"Wall blind corner cabinet with 2 shelves. This cabinet takes up more space than its width, the recommended space is 27". It can be used as left or right, requires a wall filler (not included). The door section is 9-1/2" wide. The stile width is 7". Opening is 7" wide. See the product page for an installation diagram example.
WBC2436 Malibu Kona Pre-AssembledOptionsWidth: 24"Height: 36"Depth: 12"Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 27". It can be used as left or right, requires a wall filler (not included). The door section is 9-1/2" wide. The stile width is 7". Opening is 7" wide. See the product page for an installation diagram example.
WBC2442 Malibu Kona Pre-AssembledOptionsWidth: 24"Height: 42"Depth: 12"Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 27". It can be used as left or right, requires a wall filler (not included). The door section is 9-1/2" wide. The stile width is 7". Opening is 7" wide. See the product page for an installation diagram example.
WBC3030 Malibu Kona Pre-AssembledWidth: 30"Height: 30"Depth: 12"Wall blind corner cabinet with 2 shelves. This cabinet takes up more space than its width, the recommended space is 33". It can be used as left or right, requires a wall filler (not included). The door section is 14-3/4" wide. The stile width is 7-3/4". Opening is 12-1/4" wide. See the product page for an installation diagram example.
WBC3036 Malibu Kona Pre-AssembledWidth: 30"Height: 36"Depth: 12"Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 33". It can be used as left or right, requires a wall filler (not included). The door section is 14-3/4" wide. The stile width is 7-3/4". Opening is 12-1/4" wide. See the product page for an installation diagram example.
WBC3042 Malibu Kona Pre-AssembledWidth: 30"Height: 42"Depth: 12"Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 33". It can be used as left or right, requires a wall filler (not included). The door section is 14-3/4" wide. The stile width is 7-3/4". Opening is 12-1/4" wide. See the product page for an installation diagram example.
WBC3630 Malibu Kona Pre-AssembledOptionsWidth: 36"Height: 30"Depth: 12"Wall blind corner cabinet with 2 shelves. This cabinet takes up more space than its width, the recommended space is 39". It can be used as left or right, requires a wall filler (not included). The door section is 21 1/2" wide. The stile width is 7". Opening is 19" wide. See the product page for an installation diagram example.
WBC3636 Malibu Kona Pre-AssembledOptionsWidth: 36"Height: 36"Depth: 12"Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 39". It can be used as left or right, requires a wall filler (not included). The door section is 21 1/2" wide. The stile width is 7". Opening is 19" wide. See the product page for an installation diagram example.
WBC3642 Malibu Kona Pre-AssembledOptionsWidth: 36"Height: 42"Depth: 12"Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 39". It can be used as left or right, requires a wall filler (not included). The door section is 21 1/2" wide. The stile width is 7". Opening is 19" wide. See the product page for an installation diagram example.
WPC2415 Malibu Kona Pre-AssembledWidth: 24"Height: 15"Depth: 12"Pie cut wall corner cabinet. This cabinet takes up 24" of space on each side of the corner.
WPC2418 Malibu Kona Pre-AssembledWidth: 24"Height: 18"Depth: 12"Pie cut wall corner cabinet. This cabinet takes up 24" of space on each side of the corner.
WPC2430 Malibu Kona Pre-AssembledOptionsWidth: 24"Height: 30"Depth: 12"Pie cut wall corner cabinet with 2 shelves. This cabinet takes up 24" of space on each side of the corner.
WPC2436 Malibu Kona Pre-AssembledOptionsWidth: 24"Height: 36"Depth: 12"Pie cut wall corner cabinet with 3 shelves. This cabinet takes up 24" of space on each side of the corner.
WPC2442 Malibu Kona Pre-AssembledOptionsWidth: 24"Height: 42"Depth: 12"Pie cut wall corner cabinet with 3 shelves. This cabinet takes up 24" of space on each side of the corner.
WAE1230 Malibu Kona Pre-AssembledWidth: 12"Height: 30"Depth: 12"Wall end corner angle cabinet with 2 shelves. The door is 16-1/8" wide.
WAE1236 Malibu Kona Pre-AssembledWidth: 12"Height: 36"Depth: 12"Wall end corner angle cabinet with 3 shelves. The door is 16-1/8" wide.
WAE1242 Malibu Kona Pre-AssembledWidth: 12"Height: 42"Depth: 12"Wall end corner angle cabinet with 3 shelves. The door is 16-1/8" wide.
OEL630 Malibu Kona Pre-AssembledWidth: 12"Height: 30"Depth: 6"Wall end shelf cabinet with 2 shelves. This cabinet takes up 6" of wall space. It can be used as left.
OER630 Malibu Kona Pre-AssembledWidth: 12"Height: 30"Depth: 6"Wall end shelf cabinet with 2 shelves. This cabinet takes up 6" of wall space. It can be used as right.
OEL636 Malibu Kona Pre-AssembledWidth: 12"Height: 36"Depth: 6"Wall end shelf cabinet with 2 shelves. This cabinet takes up 6" of wall space. It can be used as left.
