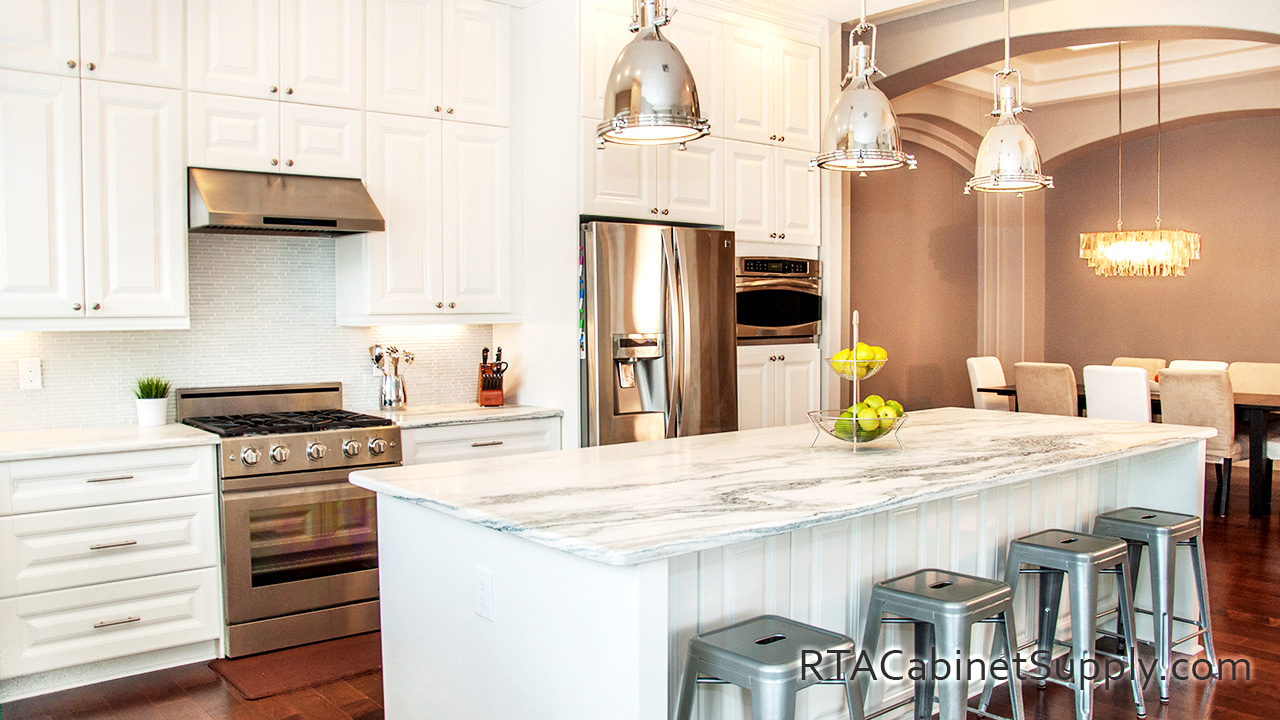

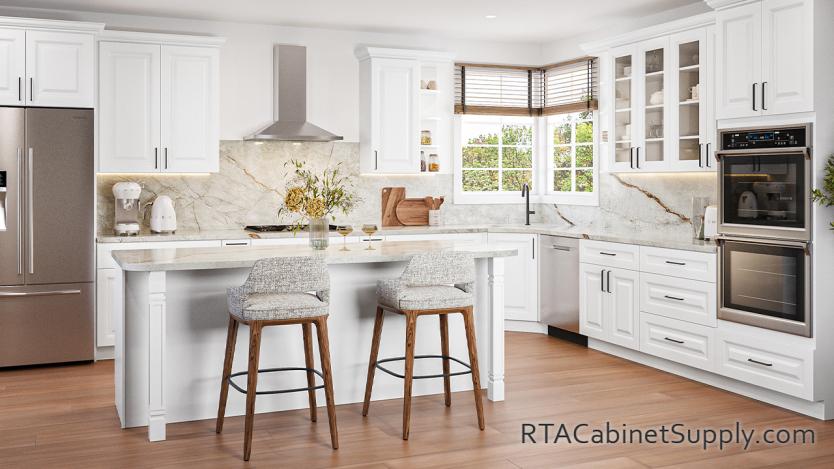

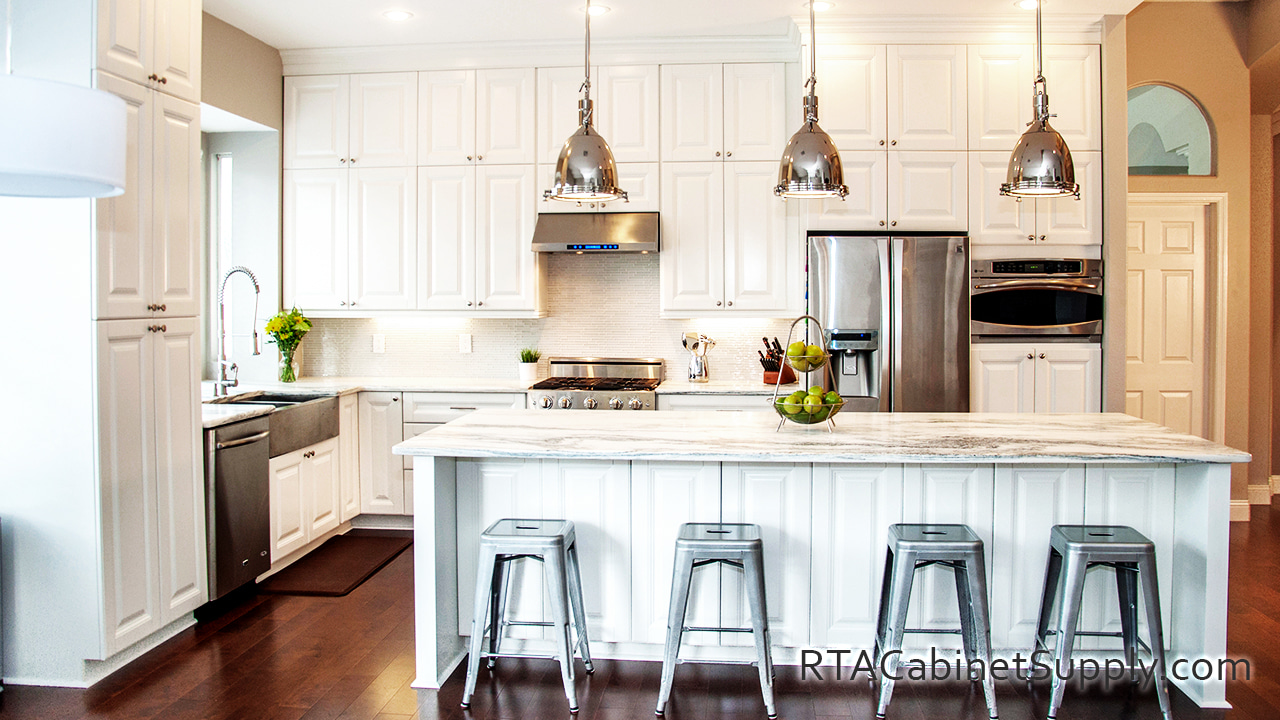

Essex White kitchen full view with an island.

Essex White full view with an island, wall and base cabinets.

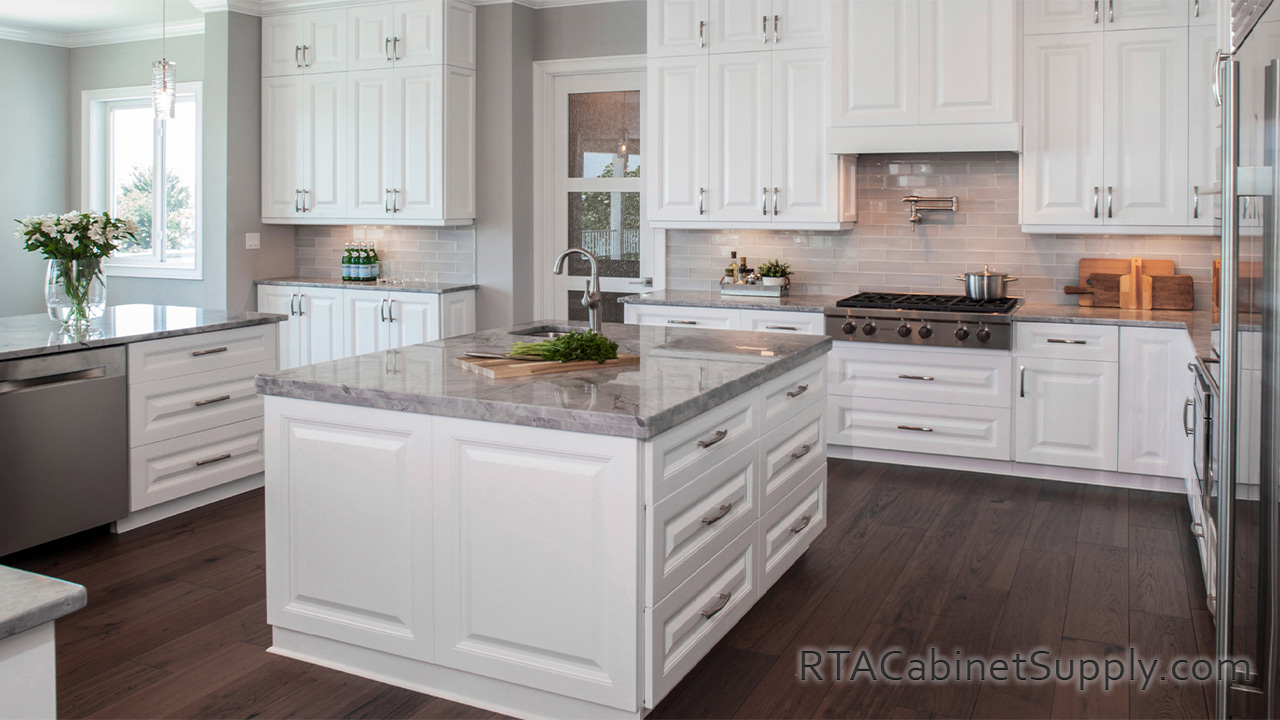

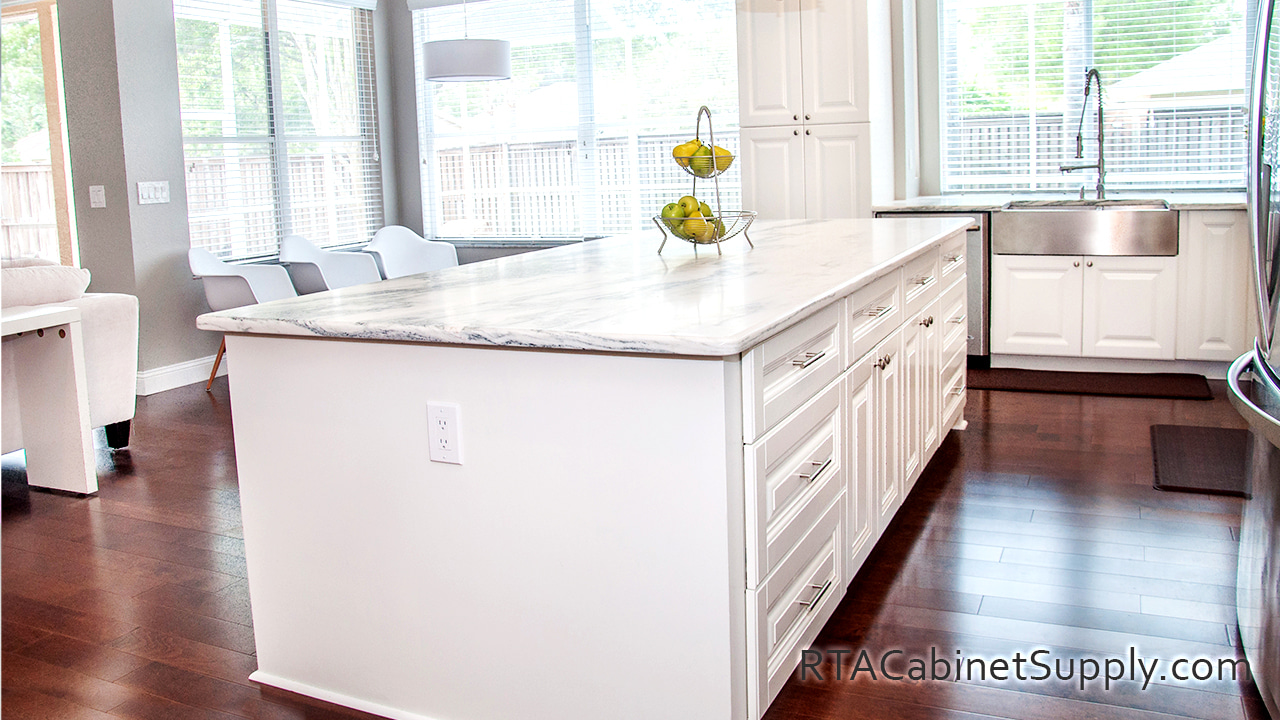

Essex White complete kitchen angle view with an island.

Essex White complete kitchen with an island front view.

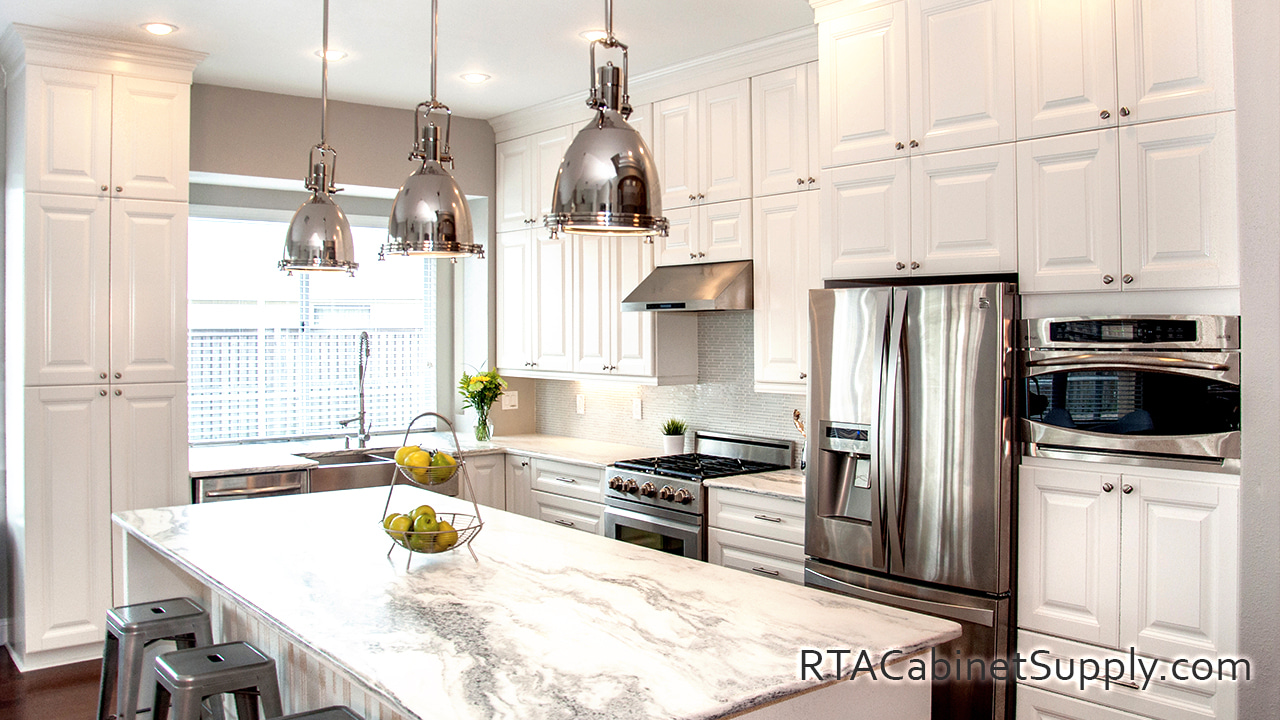

Essex White kitchen angle view with pantry cabinets, wall and base cabinets and an island.

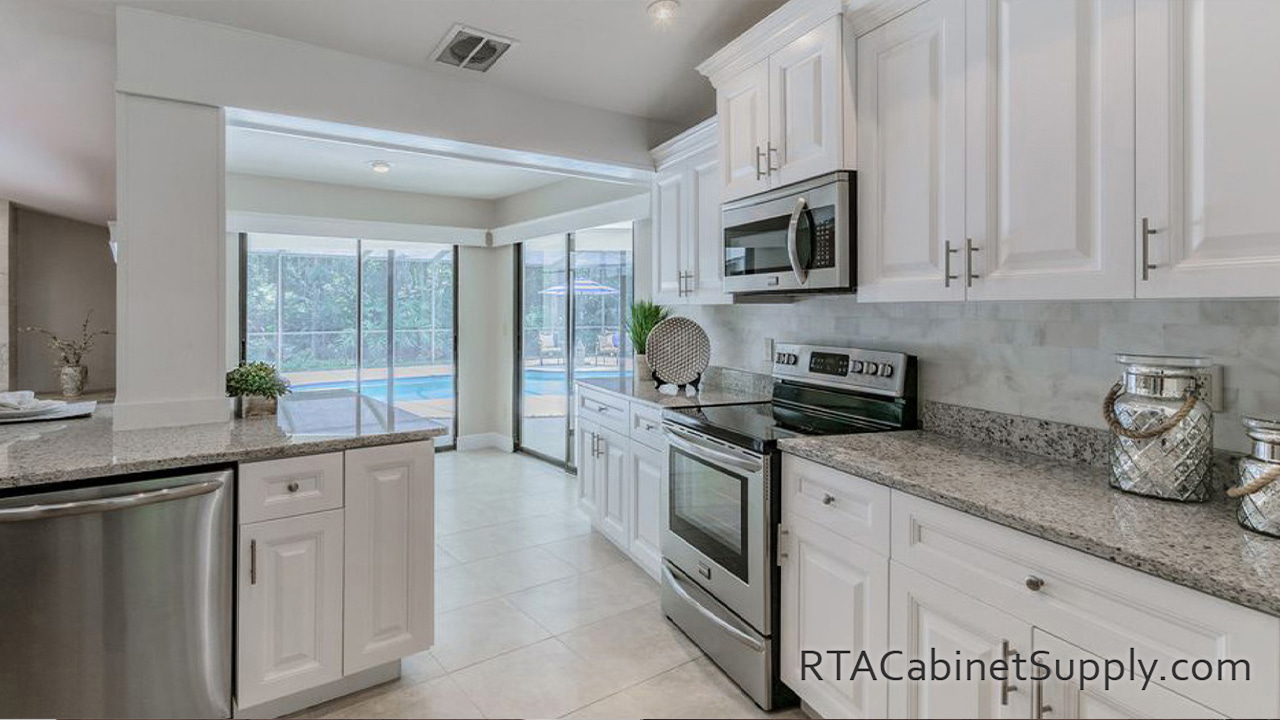

Essex White cabinets with a sink and gas range.

ABOUT ESSEX WHITE RTA CABINETS

Essex White cabinet line is a good fit for any kitchen. These ready to assemble cabinets feature quality construction, great selection of cabinets and accessories, and affordable price. If you are looking for a raised panel white cabinets, these cabinets are a perfect choice.

Best price guarantee

We are confident you get the best deal possible with us. All our cabinets are backed by the 90 Day Best Price Guarantee. If you find the same product from another retailer for less, we will beat the competitor price even after you placed the order with us. See full details and limitations.

Shipping time

Essex White ready to assemble cabinets leave the warehouse in 5-7 business days after placing an order. Standard transit time after shipping is 2-6 business days. We are proud to offer one of the industry's fastest delivery times.

Detailed Specifications

Cabinet Specifications

The detailed cabinet specifications including cabinet sizes, specific parts dimensions, height, width, and other information are below. Please note cabinet specifications vary depending on the particular cabinet line.

General specifications
Color & finish	White paint
Profile & overlay	Raised panel doors, recessed panel drawer fronts, full overlay
Wood species	Birch
Sides color	Matches cabinet front, no skins required.
Drawers	5/8" thick dovetail solid wood frame, natural color finish drawer box. Soft closing, under-mount, full extension, 6 way adjustable drawer slides. Soft closing drawer slides example: Video Picture
Door hinges	Euro-style, soft-closing, concealed, 6 way adjustable. Soft closing door hinge example: Video
Interior color	Matches cabinet front
Particle board	No particle board is used in this cabinet line construction
Doors	3/4" thick solid wood door and drawer front. The center panel is MDF (Medium Density Fiber Board) with wood veneer. Doors and drawer fronts are 5-piece construction. Why do we use MDF?
Cabinet construction	3/4" thick furniture grade plywood construction.
Face frame	Frameless
Shelves	3/4" thick plywood with wood veneer, adjustable. Metal shelf pins.
Toe kick	Toe kick does not come with cabinets. 1/2" thick toe kick is available for purchase separately.
Base corner supports	Metal corner braces
Center stile	No center stile on all cabinets
Door and drawer stoppers	Clear adhesive bumpers
Hinge side	Hinges on single door wall and base cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
CARB compliant	Yes About CARB compliance
KCMA compliant	Yes, for pre-assembled cabinets About KCMA compliance

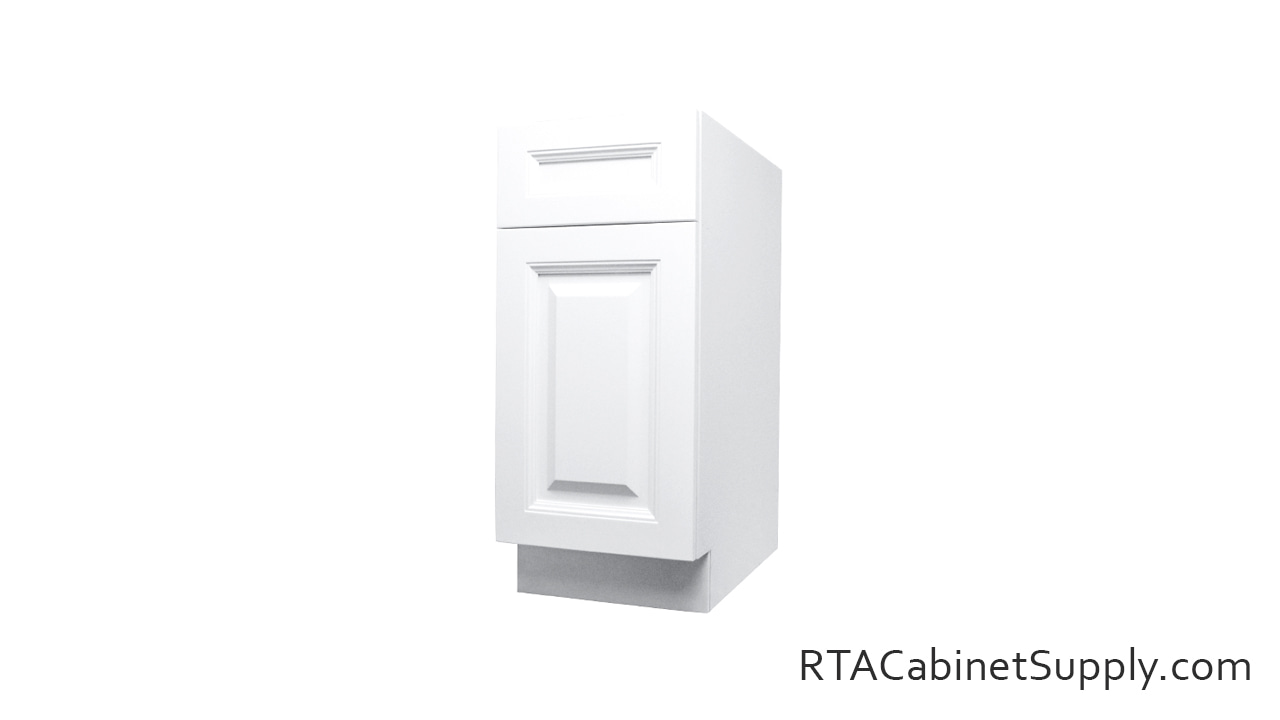

Base Cabinets
Door height	22-1/4"
Upper drawer front height	7-3/8"
Upper drawer box height	5"
Upper drawer box exterior depth (front to back)	Varies, call for more details
Shelf depth	15-3/4"
Toe kick height	4-1/2"
Toe kick depth	2-1/2" from the cabinet front
Cabinet height	34-1/2"

Drawer Base Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Upper drawer box exterior depth (front to back)	Varies, call for more details
Lower drawer fronts height	Varies, call for more details
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	Same as the regular base cabinets, see above

Bathroom Vanity Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Door height	Same as the regular base cabinets, see above
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	34-1/2"

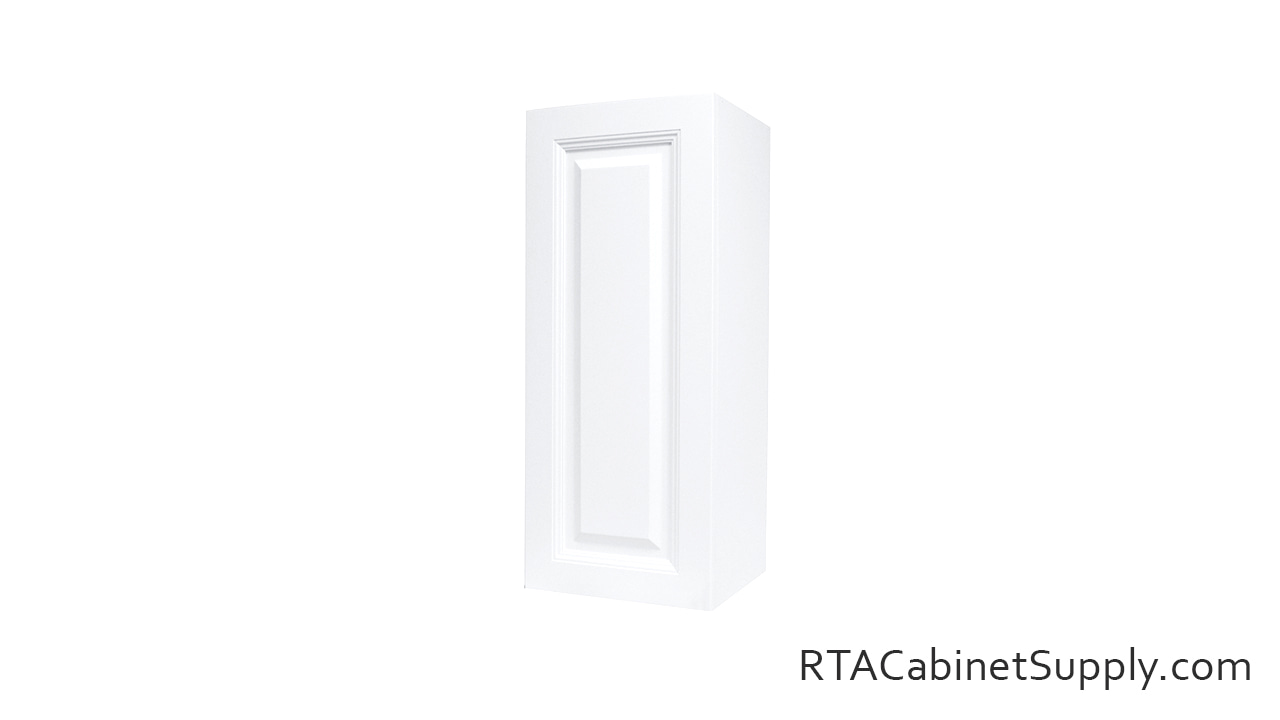

Wall Cabinets
Shelf depth	Full depth
Bottom panels finish	Matches cabinet front

Full Overlay Installation
Cabinets with full overlay doors come with a small clearance between doors/drawers and cabinet edges. If a cabinet is located next to a wall or other surface (e.g. refrigerator panel), we recommend adding at least 1/4" additional clearance to allow doors/drawers operate smoothly. The 1/4" is the minimum recommended, however, some applications will require a bigger clearance depending on hardware and other project requirements. Use a scribe molding or wall/base fillers to fill the gaps. Generally, the additional spacing is not required in between cabinets unless they are different depth (e.g. a 12" deep wall cabinet next to a 24" deep pantry). See an example

About Specifications
Cabinet specifications dimensions are typically converted from metric to inches and rounded. It may cause variations in measurements. Room lighting and screen settings will affect cabinet color appearance. Please order a sample for accurate product color information. Contact us with any questions about cabinet styles and specifications.

Assembly Information

Assembly Instructions
Assembly Information
Drawer Slides
Hinge Adjustment

Installation Information

General Installation Information

If you believe your order is missing items, extra parts or not sure about something, feel free to contact one of our support agents.

Matching Cabinet Lines

The following cabinet lines have similar specifications and the same door profile.

Essex White

Nutmeg Modern

Essex White Sample Square

Wood block cabinet color sample.
Approximate size: 6" wide x 6" high.

Special Price $2.99 Regular Price $7.48
x

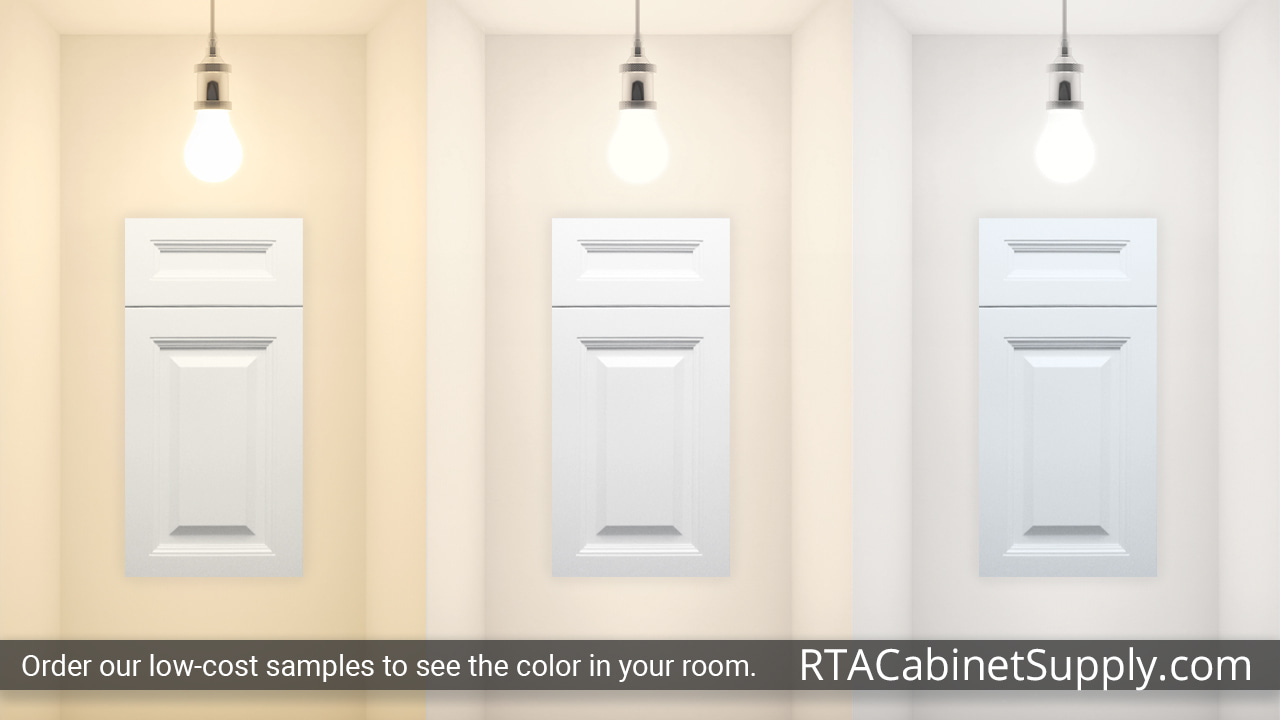

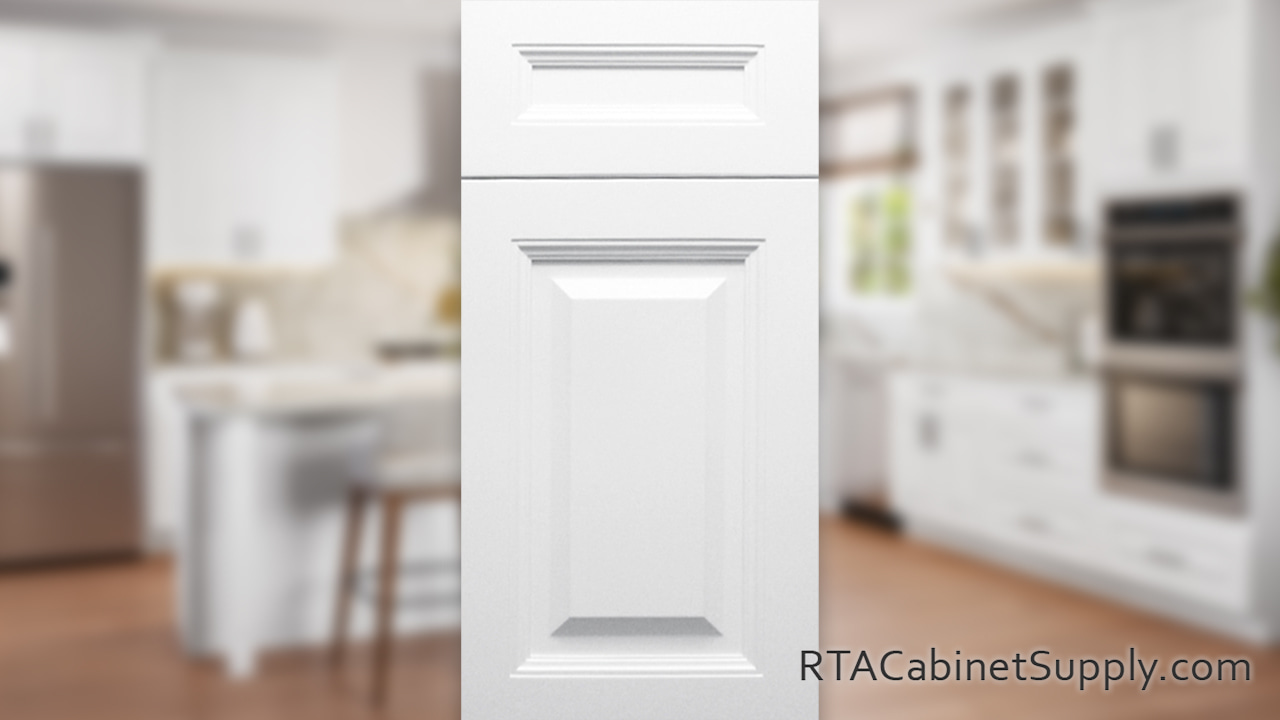

Essex White Sample Door

Approximate size: 15" wide x 15" high.

Special Price $15.99 Regular Price $39.98
x
W0930 Essex White RTA
Width: 9"
Height: 30"
Depth: 12"

Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

$254.86
x
W1230 Essex White RTA
Width: 12"
Height: 30"
Depth: 12"

Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section. This cabinet is also available with a glass door, see the Accessories tab for more details.

$292.84
x
W1530 Essex White RTA
Width: 15"
Height: 30"
Depth: 12"

Wall cabinet with 1 door and 2 shelves. This cabinet is also available with a glass door, see the Accessories tab for more details.

$302.33
x
W1830 Essex White RTA
Width: 18"
Height: 30"
Depth: 12"

Wall cabinet with 1 door and 2 shelves. This cabinet is also available with a glass door, see the Accessories tab for more details.

$359.31
x
W2130 Essex White RTA
Width: 21"
Height: 30"
Depth: 12"

Wall cabinet with 1 door and 2 shelves.

$424.22
x
W2430 Essex White RTA
Width: 24"
Height: 30"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

$443.20
x
W2730 Essex White RTA
Width: 27"
Height: 30"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves.

$490.70
x
W3030 Essex White RTA
Width: 30"
Height: 30"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

$528.68
x
W3330 Essex White RTA
Width: 33"
Height: 30"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves.

$555.58
x
W3630 Essex White RTA
Width: 36"
Height: 30"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

$603.03
x
W0936 Essex White RTA
Width: 9"
Height: 36"
Depth: 12"

Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

$283.34
x
W1236 Essex White RTA
Width: 12"
Height: 36"
Depth: 12"

Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

$311.84
x
W1536 Essex White RTA
Width: 15"
Height: 36"
Depth: 12"

Wall cabinet with 1 door and 2 shelves. This cabinet is also available with a glass door, see the Accessories tab for more details.

$359.31
x
W1836 Essex White RTA
Width: 18"
Height: 36"
Depth: 12"

Wall cabinet with 1 door and 2 shelves. This cabinet is also available with a glass door, see the Accessories tab for more details.

$387.81
x
W2136 Essex White RTA
Width: 21"
Height: 36"
Depth: 12"

Wall cabinet with 1 door and 2 shelves.

$451.10
x
W2436 Essex White RTA
Width: 24"
Height: 36"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

$498.60
x
W2736 Essex White RTA
Width: 27"
Height: 36"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves.

$528.68
x
W3036 Essex White RTA
Width: 30"
Height: 36"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

$565.09
x
W3336 Essex White RTA
Width: 33"
Height: 36"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves.

$591.98
x
W3636 Essex White RTA
Width: 36"
Height: 36"
Depth: 12"

Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

$705.92
x
W0942 Essex White RTA
Width: 9"
Height: 42"
Depth: 12"

Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

$340.31
x
W1242 Essex White RTA
Width: 12"
Height: 42"
Depth: 12"

Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

$376.74
x
W1542 Essex White RTA
Width: 15"
Height: 42"
Depth: 12"

Wall cabinet with 1 door and 3 shelves. This cabinet is also available with a glass door, see the Accessories tab for more details.

$405.22
x
W1842 Essex White RTA
Width: 18"
Height: 42"
Depth: 12"

Wall cabinet with 1 door and 3 shelves. This cabinet is also available with a glass door, see the Accessories tab for more details.

$470.12
x
W2142 Essex White RTA
Width: 21"
Height: 42"
Depth: 12"

Wall cabinet with 1 door and 3 shelves.

$536.58
x
W2442 Essex White RTA
Width: 24"
Height: 42"
Depth: 12"

Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

$555.58
x
W2742 Essex White RTA
Width: 27"
Height: 42"
Depth: 12"

Wall cabinet with 2 doors and 3 shelves.

$622.05
x
W3042 Essex White RTA
Width: 30"
Height: 42"
Depth: 12"

Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

$686.96
x
W3342 Essex White RTA
Width: 33"
Height: 42"
Depth: 12"

Wall cabinet with 2 doors and 3 shelves.

$734.44
x
W3642 Essex White RTA
Width: 36"
Height: 42"
Depth: 12"

Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

$791.41
x
W3012 Essex White RTA
Width: 30"
Height: 12"
Depth: 12"

Wall cabinet with 2 doors.

$340.31
x
W3612 Essex White RTA
Width: 36"
Height: 12"
Depth: 12"

Wall cabinet with 2 doors.

$387.81
x
W3015 Essex White RTA
Width: 30"
Height: 15"
Depth: 12"

Wall cabinet with 2 doors.

$368.82
x
W3615 Essex White RTA
Width: 36"
Height: 15"
Depth: 12"

Wall cabinet with 2 doors.

$424.22
x
W3018 Essex White RTA
Width: 30"
Height: 18"
Depth: 12"

Wall cabinet with 2 doors.

$387.81
x
W3618 Essex White RTA
Width: 36"
Height: 18"
Depth: 12"

Wall cabinet with 2 doors.

$443.20
x
W3021 Essex White RTA
Width: 30"
Height: 21"
Depth: 12"

Wall cabinet with 2 doors.

$433.71
x
W3621 Essex White RTA
Width: 36"
Height: 21"
Depth: 12"

Wall cabinet with 2 doors.

$451.10
x
W3024 Essex White RTA
Width: 30"
Height: 24"
Depth: 12"

Wall cabinet with 2 doors and 1 shelf.

$451.10
x
W3624 Essex White RTA
Width: 36"
Height: 24"
Depth: 12"

Wall cabinet with 2 doors and 1 shelf.

$509.68
x
RW3012 Essex White RTA
Width: 30"
Height: 12"
Depth: 24"

Refrigerator wall cabinet with 2 doors. This cabinet can be modified into a farmhouse sink base cabinet.

$368.82
x
RW3612 Essex White RTA
Width: 36"
Height: 12"
Depth: 24"

Refrigerator wall cabinet with 2 doors. This cabinet can be modified into a farmhouse sink base cabinet.

$509.68
x
RW3615 Essex White RTA
Width: 36"
Height: 15"
Depth: 24"

Refrigerator wall cabinet with 2 doors. This cabinet can be modified into a farmhouse sink base cabinet.

$546.08
x
RW3018 Essex White RTA
Width: 30"
Height: 18"
Depth: 24"

Refrigerator wall cabinet with 2 doors. This cabinet can be modified into a farmhouse sink base cabinet.

$405.22
x
RW3618 Essex White RTA
Width: 36"
Height: 18"
Depth: 24"

Refrigerator wall cabinet with 2 doors. This cabinet can be modified into a farmhouse sink base cabinet.

$584.06
x
RW3024 Essex White RTA
Width: 30"
Height: 24"
Depth: 24"

Refrigerator wall cabinet with 2 doors and 1 shelf. This cabinet can be modified into a farmhouse sink base cabinet.

$481.18
x
RW3624 Essex White RTA
Width: 36"
Height: 24"
Depth: 24"

Refrigerator wall cabinet with 2 doors and 1 shelf. This cabinet can be modified into a farmhouse sink base cabinet.

$677.45
x
WDC2430 Essex White RTA
Width: 24"
Height: 30"
Depth: 12"

Diagonal wall corner cabinet with 1 door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. This cabinet is also available with a glass door, see the Accessories tab for more details.

$509.68
x
WDC2436 Essex White RTA
Width: 24"
Height: 36"
Depth: 12"

Diagonal wall corner cabinet with 1 door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. This cabinet is also available with a glass door, see the Accessories tab for more details.

$565.09
x
WDC2442 Essex White RTA
Width: 24"
Height: 42"
Depth: 12"

Diagonal wall corner cabinet with 1 door and 3 shelves. This cabinet takes up 24" of space on each side of the corner. This cabinet is also available with a glass door, see the Accessories tab for more details.

$650.55
x
WOES0630 Essex White RTA
Width: 6"
Height: 30"
Depth: 12"

Wall open end shelf cabinet with 3 shelves.

$180.47
x
WOES0636 Essex White RTA
Width: 6"
Height: 36"
Depth: 12"

Wall open end shelf cabinet with 3 shelves.

$218.45
x
WOES0642 Essex White RTA
Width: 6"
Height: 42"
Depth: 12"

Wall open end shelf cabinet with 4 shelves.

$246.94
x
WOES1230 Essex White RTA
Width: 12"
Height: 30"
Depth: 12"

Wall open end shelf cabinet with 3 shelves.

$235.86
x
WOES1236 Essex White RTA
Width: 12"
Height: 36"
Depth: 12"

Wall open end shelf cabinet with 3 shelves.

$265.92
x
WOES1242 Essex White RTA
Width: 12"
Height: 42"
Depth: 12"

Wall open end shelf cabinet with 4 shelves.

$302.33
x
WSC3018 Essex White RTA
Width: 30"
Height: 18"
Depth: 12"

Wine rack cabinet. The cabinet has 7 bottle slots.

$490.70
x
WSC3618 Essex White RTA
Width: 36"
Height: 18"
Depth: 12"

Wine rack cabinet. The cabinet has 7 bottle slots.

$536.58
x
WSD1206-2 Essex White RTA
Width: 12"
Height: 6"
Depth: 12"

Wall drawer cabinet with 2 drawers.

$180.47
x
WSD1806-3 Essex White RTA
Width: 18"
Height: 6"
Depth: 12"

Wall drawer cabinet with 3 drawers.

$265.92
x
BSDC06 Essex White RTA
Width: 6"
Height: 34 1/2"
Depth: 24"

Base spice cabinet with 5 spice drawers.

$414.70
x
BSR09 Essex White RTA
Width: 9"
Height: 34 1/2"
Depth: 24"

Base spice cabinet.

$433.71
x
B9 Essex White RTA
Width: 9"
Height: 34 1/2"
Depth: 24"

Base cabinet with 1 door, 1 drawer, and 1 shelf.

$376.74
x
B12 Essex White RTA
Width: 12"
Height: 34 1/2"
Depth: 24"

Base cabinet with 1 door, 1 drawer, and 1 shelf.

$395.71
x
B15 Essex White RTA
Width: 15"
Height: 34 1/2"
Depth: 24"

Base cabinet with 1 door, 1 drawer, and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The waste container pullout hardware is available in the Cabinet Organizers section.

$424.22
x
B18 Essex White RTA
Width: 18"
Height: 34 1/2"
Depth: 24"

Base cabinet with 1 door, 1 drawer, and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The waste container pullout hardware is available in the Cabinet Organizers section.

$462.21
x
B21 Essex White RTA
Width: 21"
Height: 34 1/2"
Depth: 24"

Base cabinet with 1 door, 1 drawer, and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The waste container pullout hardware is available in the Cabinet Organizers section.

$509.68
x
B24 Essex White RTA
Width: 24"
Height: 34 1/2"
Depth: 24"

Base cabinet with 2 doors, 1 drawer, and 1 shelf.

$546.08
x
B27 Essex White RTA
Width: 27"
Height: 34 1/2"
Depth: 24"

Base cabinet with 2 doors, 1 drawer, and 1 shelf.

$584.06
x
B30 Essex White RTA
Width: 30"
Height: 34 1/2"
Depth: 24"

Base cabinet with 2 doors, 1 drawer, and 1 shelf.

$686.96
x
B33 Essex White RTA
Width: 33"
Height: 34 1/2"
Depth: 24"

Base cabinet with 2 doors, 1 drawer, and 1 shelf.

$724.94
x
B36 Essex White RTA
Width: 36"
Height: 34 1/2"
Depth: 24"

Base cabinet with 2 doors, 1 drawer, and 1 shelf.

$753.44
x
B39 Essex White RTA
Width: 39"
Height: 34 1/2"
Depth: 24"

Base cabinet with 2 doors, 1 drawer, and 1 shelf.

$827.83
x
B42 Essex White RTA
Width: 42"
Height: 34 1/2"
Depth: 24"

Base cabinet with 2 doors, 1 drawer, and 1 shelf.

$875.29
x
DB12-3 Essex White RTA
Width: 12"
Height: 34 1/2"
Depth: 24"

Drawer base cabinet with 3 drawers.

$509.68
x
DB15-3 Essex White RTA
Width: 15"
Height: 34 1/2"
Depth: 24"

Drawer base cabinet with 3 drawers.

$555.58
x
DB18-3 Essex White RTA
Width: 18"
Height: 34 1/2"
Depth: 24"

Drawer base cabinet with 3 drawers.

$591.98
x
DB21-3 Essex White RTA
Width: 21"
Height: 34 1/2"
Depth: 24"

Drawer base cabinet with 3 drawers.

$686.96
x
DB24-3 Essex White RTA
Width: 24"
Height: 34 1/2"
Depth: 24"

Drawer base cabinet with 3 drawers.

$743.92
x
DB27-3 Essex White RTA
Width: 27"
Height: 34 1/2"
Depth: 24"

Drawer base cabinet with 3 drawers.

$791.41
x
DB30-3 Essex White RTA
Width: 30"
Height: 34 1/2"
Depth: 24"

Drawer base cabinet with 3 drawers.

$818.31
x
DB33-3 Essex White RTA
Width: 33"
Height: 34 1/2"
Depth: 24"

Drawer base cabinet with 3 drawers.

$875.29
x
DB36-3 Essex White RTA
Width: 36"
Height: 34 1/2"
Depth: 24"

Drawer base cabinet with 3 drawers.

$960.74
x
SB24 Essex White RTA
Width: 24"
Height: 34 1/2"
Depth: 24"

Sink base cabinet with 2 doors, and 1 drawer front.

$509.68
x
SB27 Essex White RTA
Width: 27"
Height: 34 1/2"
Depth: 24"

Sink base cabinet with 2 doors, and 1 drawer front.

$536.58
x
SB30 Essex White RTA
Width: 30"
Height: 34 1/2"
Depth: 24"

Sink base cabinet with 2 doors, and 1 drawer front.

$565.09
x
SB33 Essex White RTA
Width: 33"
Height: 34 1/2"
Depth: 24"

Sink base cabinet with 2 doors, and 1 drawer front.

$591.98
x
SB36 Essex White RTA
Width: 36"
Height: 34 1/2"
Depth: 24"

Sink base cabinet with 2 doors, and 1 drawer front.

$631.55
x
SB39 Essex White RTA
Width: 39"
Height: 34 1/2"
Depth: 24"

Sink base cabinet with 2 doors, and 1 drawer front.

$658.47
x
SB42 Essex White RTA
Width: 42"
Height: 34 1/2"
Depth: 24"

Sink base cabinet with 2 doors, and 1 drawer front.

$705.92
x
FSB30 Essex White RTA
Width: 30"
Height: 34 1/2"
Depth: 24"

Farmhouse sink base cabinet with 2 doors. The door section is approximately 18" high.

$435.29
x
FSB33 Essex White RTA
Width: 33"
Height: 34 1/2"
Depth: 24"

Farmhouse sink base cabinet with 2 doors. The door section is approximately 18" high.

$466.95
x
FSB36 Essex White RTA
Width: 36"
Height: 34 1/2"
Depth: 24"

Farmhouse sink base cabinet with 2 doors. The door section is approximately 18" high.

$498.60
x
BLS33 Essex White RTA
Width: 33"
Height: 34 1/2"
Depth: 24"

Lazy Susan cabinet. This cabinet takes up 33" of space on each side of the corner.

$1,043.06
x
BLS36 Essex White RTA
Width: 36"
Height: 34 1/2"
Depth: 24"

Lazy Susan cabinet. This cabinet takes up 36" of space on each side of the corner.

$1,109.53
x
BDC36 Essex White RTA
Width: 36"
Height: 34 1/2"
Depth: 24"

Base diagonal cabinet with 1 door. This cabinet can also be used as a sink base cabinet. Contact us for the sink base conversion details.

$875.29
x
BBC39 Essex White RTA
Width: 39"
Height: 34 1/2"
Depth: 24"

Base blind corner cabinet with 1 door, 1 drawer, and 1 shelf. The door and drawer section is approximately 12" wide. Stile is 6" wide. This cabinet may need to be pulled out from a wall depending on a kitchen layout. It can be used as left or right, requires a base filler (not included). See the product page for an installation diagram example.

$584.06
x
BBC42 Essex White RTA
Width: 42"
Height: 34 1/2"
Depth: 24"

Base blind corner cabinet with 1 door, 1 drawer, and 1 shelf. The door and drawer section is approximately 15" wide. Stile is 6" wide. This cabinet may need to be pulled out from a wall depending on a kitchen layout. It can be used as left or right, requires a base filler (not included). See the product page for an installation diagram

$650.55
x

Essex White - Ready to Assemble Kitchen Cabinets

Cabinet Specifications

Assembly Instructions

Installation Information

Matching Cabinet Lines
