Bristol Grey is a painted RTA cabinet line. It comes with an advanced hardware and full overlay doors. There is a wide selection of accessories and moldings that will customize every kitchen. It is made of euculyptus grandis wood species and have a dark grey paint finish.
Best price guarantee
We are confident you get the best deal possible with us. All our cabinets are backed by the 90 Day Best Price Guarantee. If you find the same product from another retailer for less, we will beat the competitor price even after you placed the order with us. See full details and limitations.
Shipping time
Bristol Grey ready to assemble cabinets leave the warehouse in 5-7 business days after placing an order. Standard transit time after shipping is 2-6 business days. We are proud to offer one of the industry's fastest delivery times.
The detailed cabinet specifications including cabinet sizes, specific parts dimensions, height, width, and other information are below. Please note cabinet specifications vary depending on the particular cabinet line.
General specifications
Color & finish
Dark grey waterborne UV finish from Sherwin Williams®
Profile & overlay
Recessed panel, full overlay
Wood species
Euculyptus grandis
Sides color
Matches cabinet front, no skins required.

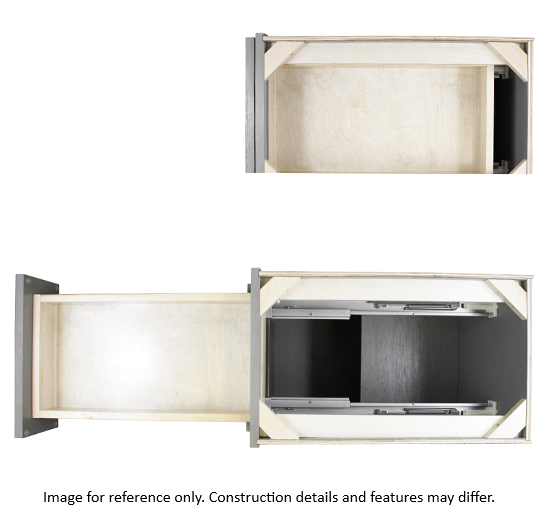

Drawers
17 mm (close to 3/4" thick) dovetail solid wood frame, 1/2" thick plywood bottom, natural color finish. Soft closing, under-mount, full extension, 6 way adjustable. Soft closing drawer examples: VideoPicture
Door hinges
Euro-style, soft closing, concealed, 6 way adjustable. The soft closing mode can be turned off. Soft closing door hinge example: Video
Interior color
Matches cabinet front
Particle board
No particle board is used in this cabinet line construction
Doors
3/4" solid eucalyptus grandis frame, eucalyptus grandis center panel.

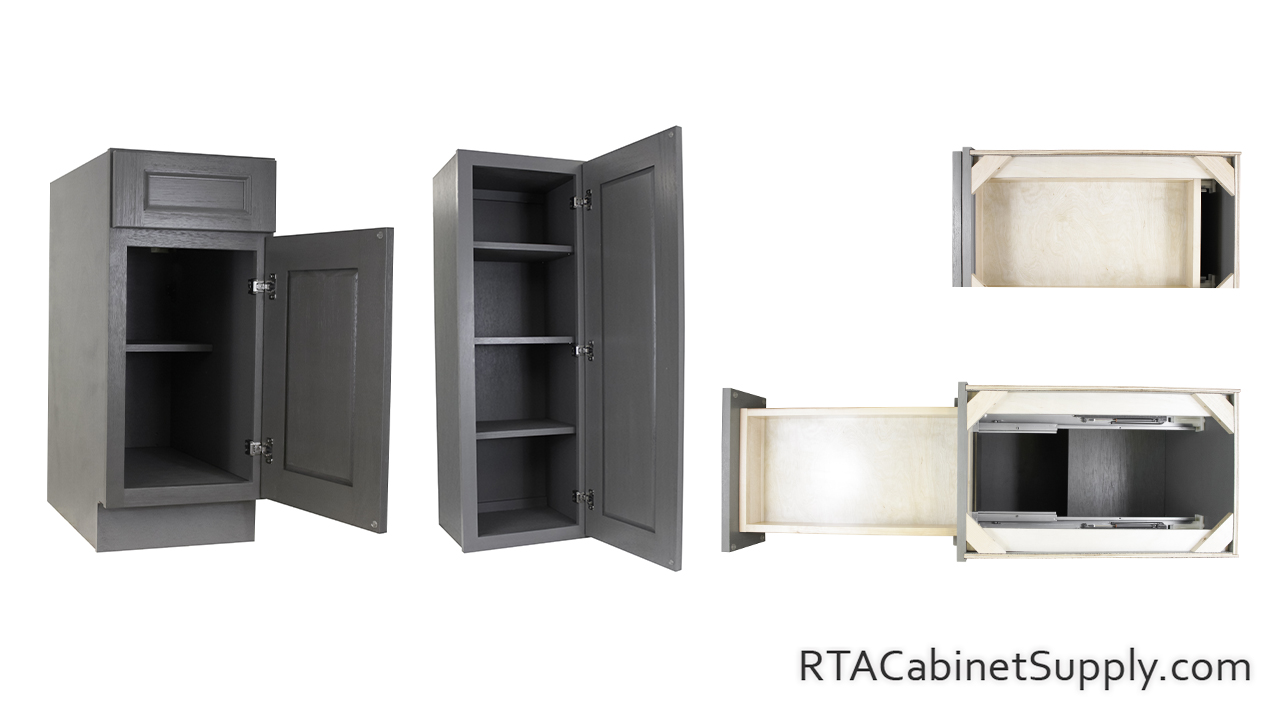

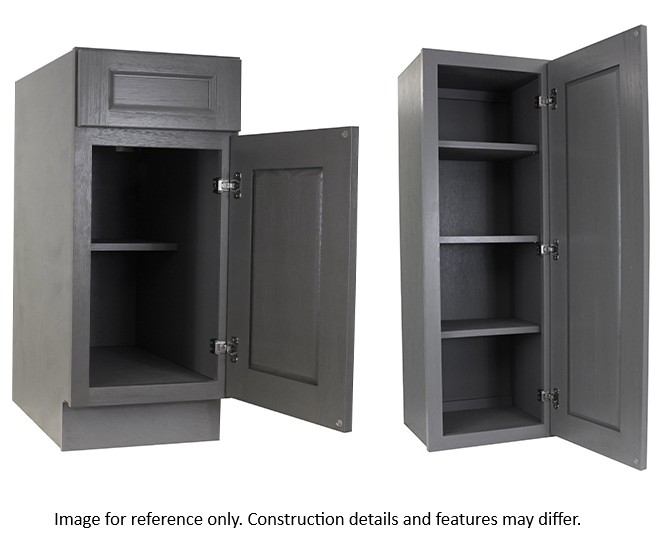

Cabinet construction
1/2" A-Grade plywood with wood veneer on sides of wall and base cabinets. 1/2" A-Grade plywood with wood veneer on tops and bottoms of wall cabinets. 3/8" A-Grade plywood with wood veneer on bottoms of base cabinets. Back panels are 1/2"-3/4" thick. Wall cabinets have picture frame recess style back panels. Most base cabinets have full back panels. Some cabinets have additional installation rail strips.
No center stile on all wall and base cabinets up to 36" wide
Door and drawer stoppers
Clear adhesive bumpers
Hinge side
Hinges on single door wall and base cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
Cabinets with full overlay doors come with a small clearance between doors/drawers and cabinet edges. If a cabinet is located next to a wall or other surface (e.g. refrigerator panel), we recommend adding at least 1/4" additional clearance to allow doors/drawers operate smoothly. The 1/4" is the minimum recommended, however, some applications will require a bigger clearance depending on hardware and other project requirements. Use a scribe molding or wall/base fillers to fill the gaps. Generally, the additional spacing is not required in between cabinets unless they are different depth (e.g. a 12" deep wall cabinet next to a 24" deep pantry). See an example
About Specifications
Cabinet specifications dimensions are typically converted from metric to inches and rounded. It may cause variations in measurements. Room lighting and screen settings will affect cabinet color appearance. Please order a sample for accurate product color information. Contact us with any questions about cabinet styles and specifications.

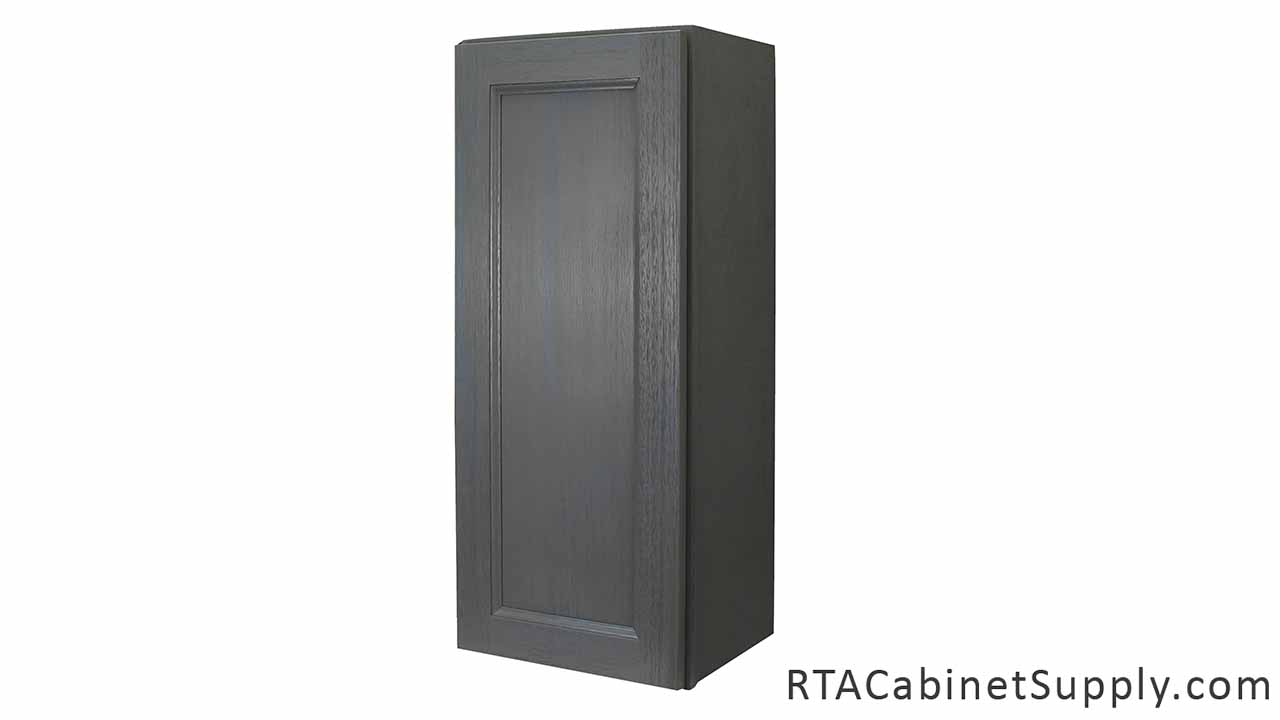

Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Diagonal wall corner cabinet with 1 door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. This cabinet is also available with a glass door, see the Accessories tab for more details.
Diagonal wall corner cabinet with 1 door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. This cabinet is also available with a glass door, see the Accessories tab for more details.
Diagonal wall corner cabinet with 1 door and 3 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. This cabinet is also available with a glass door, see the Accessories tab for more details.
Diagonal wall corner cabinet with 1 door and 2 shelves. This cabinet takes up 27" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets. See the product page for more details. This cabinet is also available with a glass door, see the Accessories tab for more details.
Diagonal wall corner cabinet with 1 door and 3 shelves. This cabinet takes up 27" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets. See the product page for more details. This cabinet is also available with a glass door, see the Accessories tab for more details.
Wall blind corner cabinet with 1 door and 2 shelves. This cabinet will be provided as a W3030 cabinet and WF630 filler. The filler will be used as a center stile, it will need to be mounted on-site. This cabinet takes up more space than its width, the recommended space is 30"-33". It can be used as left or right. The door section is 11-3/16" wide. The cabinet will come with two doors, but you will need to remove the one door during assembly. Afterward, you will install a 6" filler in the center of the cabinet to serve as the stile. The filler will be included. See the product page for an installation diagram example.
Wall blind corner cabinet with 1 door and 2 shelves. This cabinet will be provided as a W3036 cabinet and WF642 filler. The filler will be used as a center stile, it will need to be mounted on-site. This cabinet takes up more space than its width, the recommended space is 30"-33". It can be used as left or right. The door section is 11-3/16" wide. The cabinet will come with two doors, but you will need to remove the one door during assembly. Afterward, you will install a 6" filler in the center of the cabinet to serve as the stile. The filler will be included. See the product page for an installation diagram example.
Wall blind corner cabinet with 1 door and 3 shelves. This cabinet will be provided as a W3042 cabinet and WF642 filler. The filler will be used as a center stile, it will need to be mounted on-site. This cabinet takes up more space than its width, the recommended space is 30"-33". It can be used as left or right. The door section is 11-3/16" wide. The cabinet will come with two doors, but you will need to remove the one door during assembly. Afterward, you will install a 6" filler in the center of the cabinet to serve as the stile. The filler will be included. See the product page for an installation diagram example.

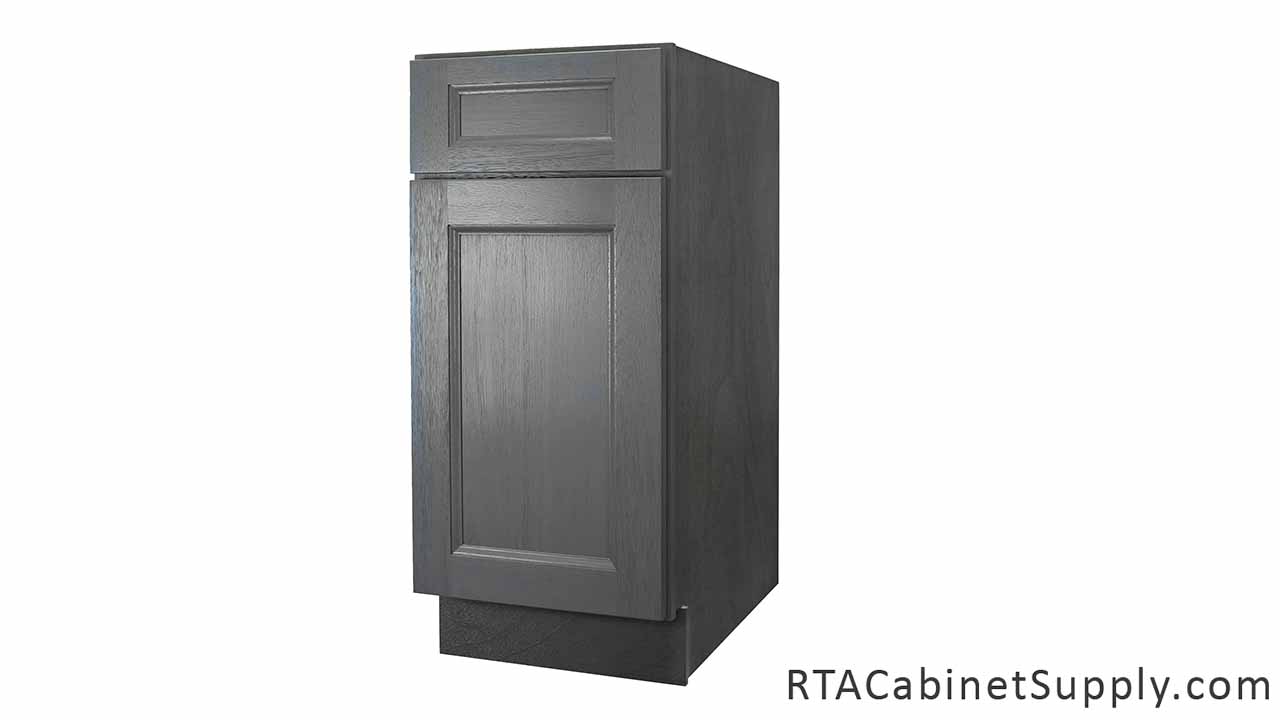

Base cabinet with 1 door, 1 drawer, and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The waste container pullout hardware is available in the Cabinet Organizers section.
Base cabinet with 1 door, 1 drawer, and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The waste container pullout hardware is available in the Cabinet Organizers section.
