Anchester Espresso Pre-Assembled Cabinets



Cabinet Specifications
The detailed cabinet specifications including cabinet sizes, specific parts dimensions, height, width, and other information are below. Please note cabinet specifications vary depending on the particular cabinet line.
|
General specifications | |
---|---|

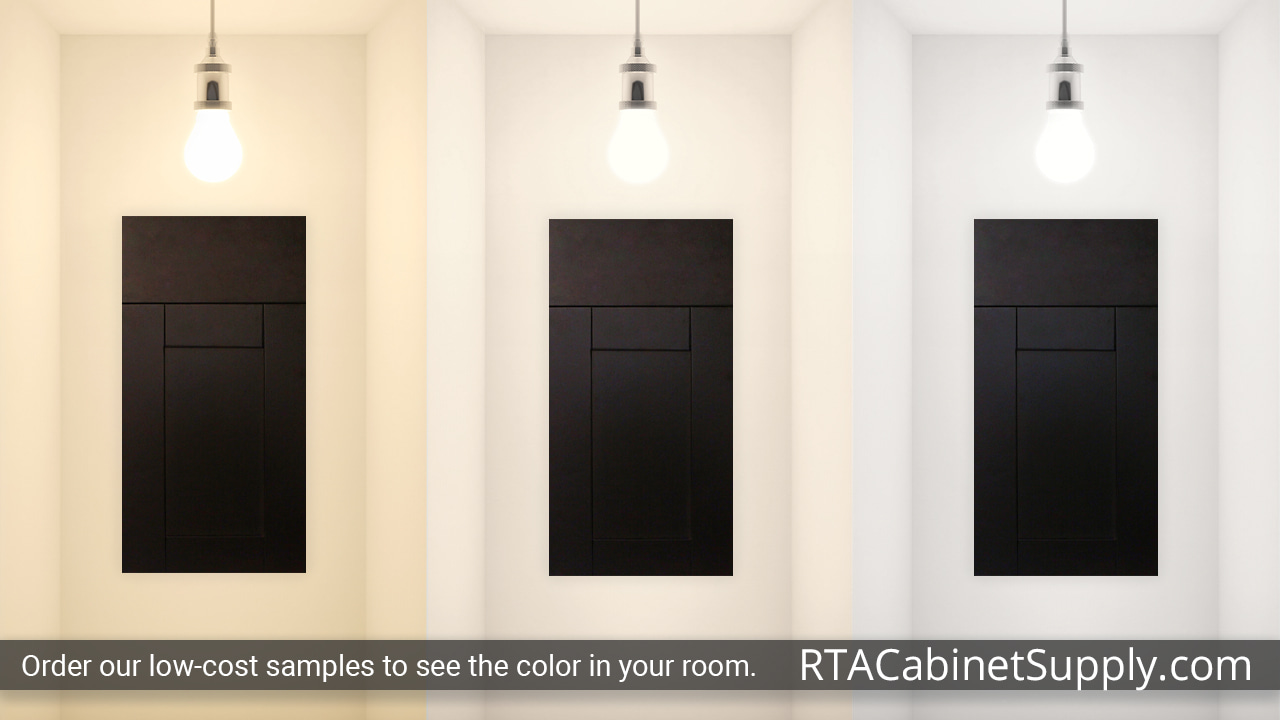

Color | Dark espresso |
Finish | Stain |
Door and drawer profile | Shaker style doors, solid slab drawer fronts |
Wood species | Maple |
Sides color | Matches cabinet front, no skins required. |
Overlay | Full overlay |

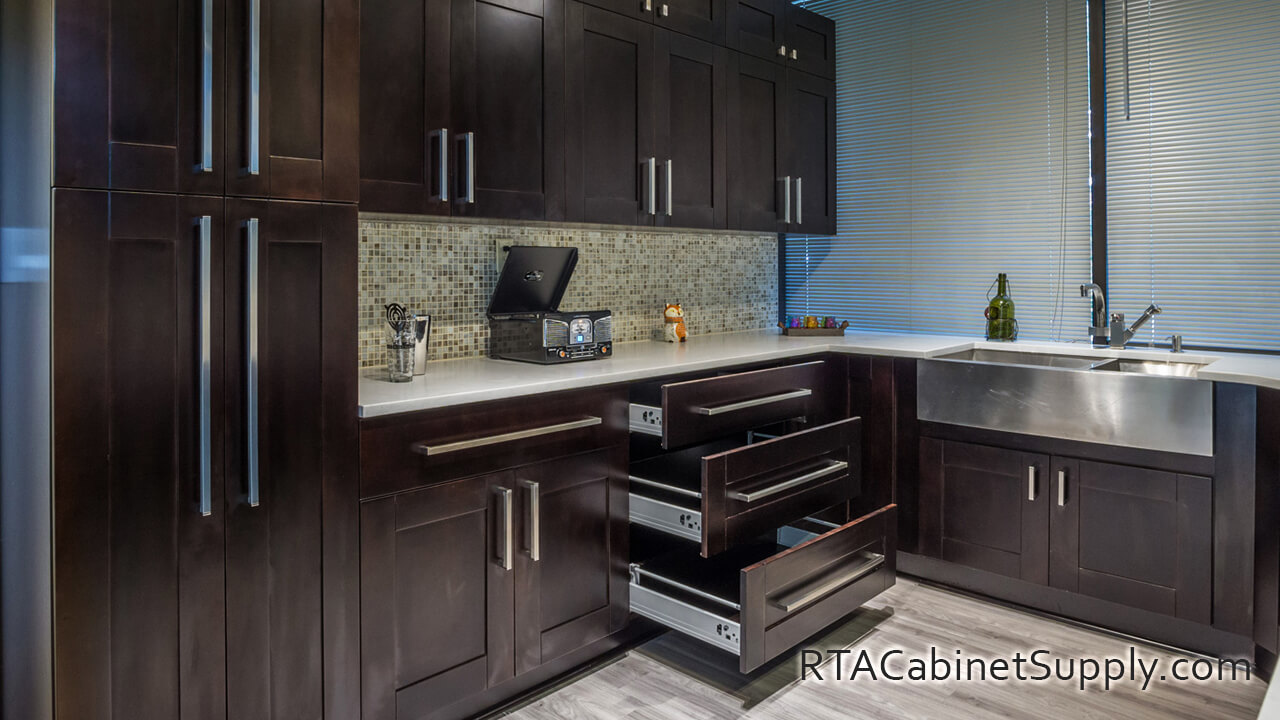

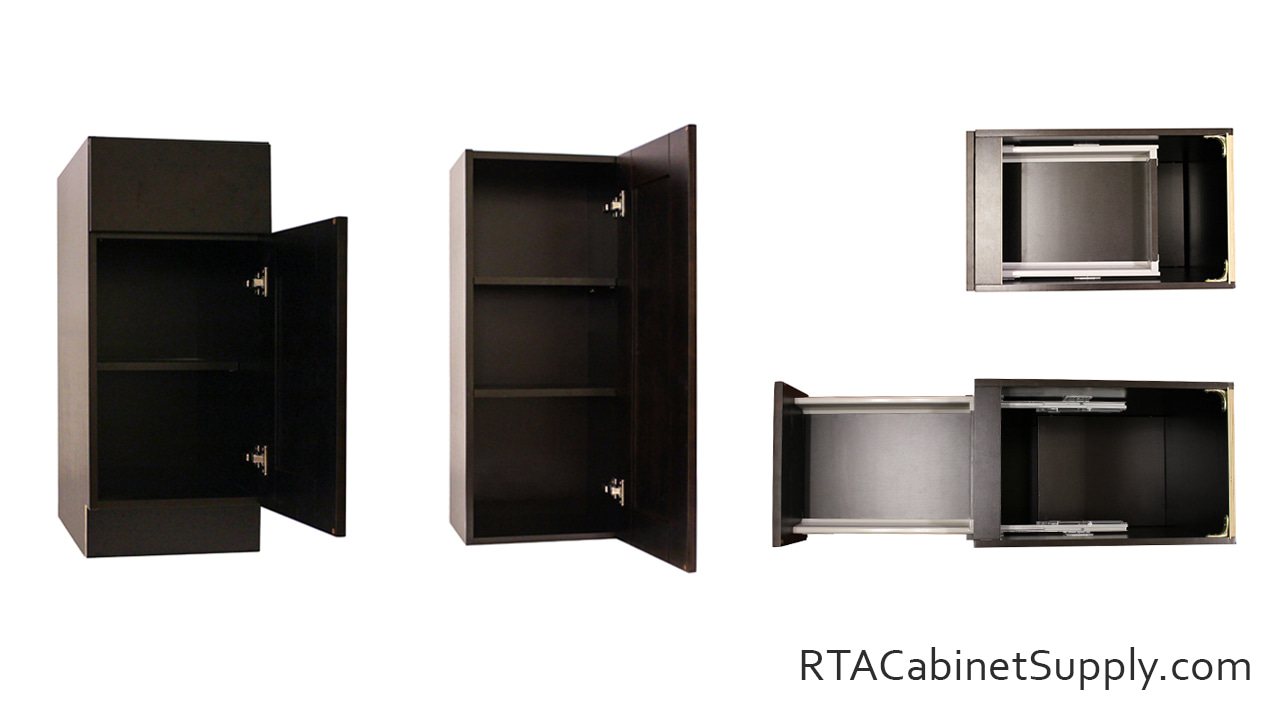

Drawer slides | Soft closing, under mount, full extension. Video Picture |
Door hinges | Euro-style, soft closing, concealed, 6 way adjustable. Video |
Interior color | Matches cabinet front |
Toe kick color | Matches cabinet front |
Particle board | No particle board is used in this cabinet line construction |
Doors and drawer fronts | 3/4" thick solid wood door and drawer front. Center panel is MDF (Medium Density Fiber Board) with wood veneer. Doors are 5-piece construction, drawer fronts are solid slab construction. Why do we use MDF? |
Side, top, and bottom panels | 3/4" thick plywood with wood veneer. |
Back panel | 1/4" inch thick with 1/2" thick bordering frame around the perimeter of the panel for added support. Set into dado of top, bottom, and side panels. |
Installation rail | None |
Face frame | Frameless |
Drawer box | Metal frame with plywood bottom and back. |
Shelves | 3/4" thick plywood with wood veneer, adjustable |
Shelf pins | Metal |
Toe kick thickness | 1/2" |
Base corner supports | Metal braces |
Center stile | No center stile on all cabinets |
Door and drawer stoppers | Foam adheisive bumpers |
Hinge side | Hinges on single door wall and base cabinets are located on the right side by default. In most cases they can be reversed to the opposite side. Reversing cabinet hinge position may require pre drilling small holes. |
CARB compliant | Yes About CARB compliance |
KCMA compliant | Yes, for pre-assembled cabinets About KCMA compliance |
Base Cabinets | |
---|---|
Door height | 22-3/8" |
Upper drawer front height | 7-1/4" |
Upper drawer box height | 3-1/4" |
Upper drawer box exterior depth (front to back) | Varies, call for more details |
Shelf depth | 15-7/8" |
Toe kick height | 4-1/2" |
Toe kick depth | 2-1/2" from the cabinet front |
Cabinet height | 34-1/2" |
Drawer Base Cabinets | |
---|---|
Upper drawer front height | Same as the regular base cabinets, see above |
Upper drawer box height | Same as the regular base cabinets, see above |
Upper drawer box exterior depth (front to back) | Varies, call for more details |
Lower drawer fronts height |
11-1/8" |
Toe kick height | Same as the regular base cabinets, see above |
Toe kick depth | Same as the regular base cabinets, see above |
Cabinet height | Same as the regular base cabinets, see above |
Bathroom Vanity Cabinets | |
---|---|
Upper drawer front height | 7" |
Upper drawer box height | Same as the regular base cabinets, see above |
Door height | 21-1/4" |
Toe kick height | Same as the regular base cabinets, see above |
Toe kick depth | Same as the regular base cabinets, see above |
Cabinet height | 33" |
Wall Cabinets | |
Shelf depth | Full depth |
Bottom panels finish | Matches cabinet front |
Full Overlay Installation | |
---|---|
Cabinets with full overlay doors come with a small clearance between doors/drawers and cabinet edges. If a cabinet is located next to a wall or other surface (e.g. refrigerator panel), we recommend adding at least 1/4" additional clearance to allow doors/drawers operate smoothly. The 1/4" is the minimum recommended, however, some applications will require a bigger clearance depending on hardware and other project requirements. Use a scribe molding or wall/base fillers to fill the gaps. Generally the additional spacing is not required in between cabinets unless they are different depth (e.g. a 12" deep wall cabinet next to a 24" deep pantry). See an example |
About Specifications | |
---|---|
Specifications are subject to change without notice. Certain dimensions are rounded to the nearest 1/8". Contact us with any questions about cabinet styles and specifications. |
Compare Espresso Cabinets
With so many choices, it is easy to get confused. Use the comparison tables below to get a basic idea of each of the espresso color cabinet lines we offer. See the Detailed Specifications tab to get more details.
- W0930 Anchester Espresso Pre-AssembledWall cabinet 9" wide x 30" high x 12" deep with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section. Learn More
- W3030 Anchester Espresso Pre-AssembledWall cabinet 30" wide x 30" high x 12" deep with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details. Learn More
- W1230 Anchester Espresso Pre-AssembledWall cabinet 12" wide x 30" high x 12" deep with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section. This cabinet is also available with a glass door, see the Accessories tab for more details. Learn More
- W1530 Anchester Espresso Pre-AssembledWall cabinet 15" wide x 30" high x 12" deep with 1 door and 2 shelves. This cabinet is also available with a glass door, see the Accessories tab for more details. Learn More
- W1830 Anchester Espresso Pre-AssembledWall cabinet 18" wide x 30" high x 12" deep with 1 door and 2 shelves. This cabinet is also available with a glass door, see the Accessories tab for more details. Learn More
- W2130 Anchester Espresso Pre-AssembledWall cabinet 21" wide x 30" high x 12" deep with 1 door and 2 shelves. This cabinet is also available with a glass door, see the Accessories tab for more details. Learn More
- W2430 Anchester Espresso Pre-AssembledWall cabinet 24" wide x 30" high x 12" deep with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details. Learn More
- W2730 Anchester Espresso Pre-AssembledWall cabinet 27" wide x 30" high x 12" deep with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details. Learn More
- W3330 Anchester Espresso Pre-AssembledWall cabinet 33" wide x 30" high x 12" deep with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details. Learn More
- W3630 Anchester Espresso Pre-AssembledWall cabinet 36" wide x 30" high x 12" deep with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details. Learn More
- W0936 Anchester Espresso Pre-AssembledWall cabinet 9" wide x 36" high x 12" deep with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section. Learn More
- W1236 Anchester Espresso Pre-AssembledWall cabinet 12" wide x 36" high x 12" deep with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section. This cabinet is also available with a glass door, see the Accessories tab for more details. Learn More
- W1536 Anchester Espresso Pre-AssembledWall cabinet 15" wide x 36" high x 12" deep with 1 door and 2 shelves. This cabinet is also available with a glass door, see the Accessories tab for more details. Learn More
- W1836 Anchester Espresso Pre-AssembledWall cabinet 18" wide x 36" high x 12" deep with 1 door and 2 shelves. This cabinet is also available with a glass door, see the Accessories tab for more details. Learn More
- W2136 Anchester Espresso Pre-AssembledWall cabinet 21" wide x 36" high x 12" deep with 1 door and 2 shelves. This cabinet is also available with a glass door, see the Accessories tab for more details. Learn More
- W2436 Anchester Espresso Pre-AssembledWall cabinet 24" wide x 36" high x 12" deep with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details. Learn More
- W2736 Anchester Espresso Pre-AssembledWall cabinet 27" wide x 36" high x 12" deep with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details. Learn More
- W3036 Anchester Espresso Pre-AssembledWall cabinet 30" wide x 36" high x 12" deep with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details. Learn More
- W3336 Anchester Espresso Pre-AssembledWall cabinet 33" wide x 36" high x 12" deep with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details. Learn More
- W3636 Anchester Espresso Pre-AssembledWall cabinet 36" wide x 36" high x 12" deep with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details. Learn More
- W0942 Anchester Espresso Pre-AssembledWall cabinet 9" wide x 42" high x 12" deep with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section. Learn More
- W1242 Anchester Espresso Pre-AssembledWall cabinet 12" wide x 42" high x 12" deep with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section. This cabinet is also available with a glass door, see the Accessories tab for more details. Learn More
- W1542 Anchester Espresso Pre-AssembledWall cabinet 15" wide x 42" high x 12" deep with 1 door and 3 shelves. This cabinet is also available with a glass door, see the Accessories tab for more details. Learn More
- W1842 Anchester Espresso Pre-AssembledWall cabinet 18" wide x 42" high x 12" deep with 1 door and 3 shelves. This cabinet is also available with a glass door, see the Accessories tab for more details. Learn More
- W2142 Anchester Espresso Pre-AssembledWall cabinet 21" wide x 42" high x 12" deep with 1 door and 3 shelves. This cabinet is also available with a glass door, see the Accessories tab for more details. Learn More
- W2442 Anchester Espresso Pre-AssembledWall cabinet 24" wide x 42" high x 12" deep with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details. Learn More
- W2742 Anchester Espresso Pre-AssembledWall cabinet 27" wide x 42" high x 12" deep with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details. Learn More
- W3042 Anchester Espresso Pre-AssembledWall cabinet 30" wide x 42" high x 12" deep with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details. Learn More
- W3342 Anchester Espresso Pre-AssembledWall cabinet 33" wide x 42" high x 12" deep with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details. Learn More
- W3642 Anchester Espresso Pre-AssembledWall cabinet 36" wide x 42" high x 12" deep with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details. Learn More
- W3012 Anchester Espresso Pre-AssembledWall cabinet 30" wide x 12" high x 12" deep with 2 doors. Learn More
- W3612 Anchester Espresso Pre-AssembledWall cabinet 36" wide x 12" high x 12" deep with 2 doors. Learn More
- W3015 Anchester Espresso Pre-AssembledWall cabinet 30" wide x 15" high x 12" deep with 2 doors. Learn More
- W3615 Anchester Espresso Pre-AssembledWall cabinet 36" wide x 15" high x 12" deep with 2 doors. Learn More
- W3018 Anchester Espresso Pre-AssembledWall cabinet 30" wide x 18" high x 12" deep with 2 doors. Learn More
- W3618 Anchester Espresso Pre-AssembledWall cabinet 36" wide x 18" high x 12" deep with 2 doors. Learn More
- W3021 Anchester Espresso Pre-AssembledWall cabinet 30" wide x 21" high x 12" deep with 2 doors. Learn More
- W3621 Anchester Espresso Pre-AssembledWall cabinet 36" wide x 21" high x 12" deep with 2 doors. Learn More
- W3024 Anchester Espresso Pre-AssembledWall cabinet 30" wide x 24" high x 12" deep with 2 doors and 1 shelf. Learn More
- W3624 Anchester Espresso Pre-AssembledWall cabinet 36" wide x 24" high x 12" deep with 2 doors and 1 shelf. Learn More
- RW3612 Anchester Espresso Pre-AssembledRefrigerator wall cabinet 36" wide x 12" high x 24" deep with 2 doors. This cabinet can be modified into a farmhouse sink base cabinet. Learn More
- RW3615 Anchester Espresso Pre-AssembledRefrigerator wall cabinet 36" wide x 15" high x 24" deep with 2 doors. This cabinet can be modified into a farmhouse sink base cabinet. Learn More
- RW3618 Anchester Espresso Pre-AssembledRefrigerator wall cabinet 36" wide x 18" high x 24" deep with 2 doors. This cabinet can be modified into a farmhouse sink base cabinet. Learn More
- RW3621 Anchester Espresso Pre-AssembledRefrigerator wall cabinet 36" wide x 21" high x 24" deep with 2 doors. This cabinet can be modified into a farmhouse sink base cabinet. Learn More
- RW3624 Anchester Espresso Pre-AssembledRefrigerator wall cabinet 36" wide x 24" high x 24" deep with 2 doors and 1 shelf. This cabinet can be modified into a farmhouse sink base cabinet. Learn More
- WDC2430 Anchester Espresso Pre-AssembledDiagonal wall corner cabinet 24" wide x 30" high x 12" deep with 1 door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. This cabinet is also available with a glass door, see the Accessories tab for more details. Learn More
- WDC2436 Anchester Espresso Pre-AssembledDiagonal wall corner cabinet 24" wide x 36" high x 12" deep with 1 door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. This cabinet is also available with a glass door, see the Accessories tab for more details. Learn More
- WDC243615 Anchester Espresso Pre-AssembledDiagonal wall corner cabinet 24" wide x 36" high x 15" deep with 1 door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets. See the product page for more details. This cabinet is also available with a glass door, see the Accessories tab for more details. Learn More
- WDC2442 Anchester Espresso Pre-AssembledDiagonal wall corner cabinet 24" wide x 42" high x 12" deep with 1 door and 3 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. This cabinet is also available with a glass door, see the Accessories tab for more details. Learn More
- WDC244215 Anchester Espresso Pre-AssembledDiagonal wall corner cabinet 24" wide x 42" high x 15" deep with 1 door and 3 shelves. This cabinet takes up 24" of space on each side of the corner. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets. See the product page for more details. This cabinet is also available with a glass door, see the Accessories tab for more details. Learn More
- WEA1230 Anchester Espresso Pre-AssembledWall end corner angle cabinet 12" wide x 30" high x 12" deep with 1 door and 2 shelves. This cabinet takes up 12" of wall space, the door is 13-1/4" wide. It can be used as left or right. Learn More
- WEA1236 Anchester Espresso Pre-AssembledWall end corner angle cabinet 12" wide x 36" high x 12" deep with 1 door and 2 shelves. This cabinet takes up 12" of wall space, the door is 13-1/4" wide. It can be used as left or right. Learn More
- WEA1242 Anchester Espresso Pre-AssembledWall end corner angle cabinet 12" wide x 42" high x 12" deep with 1 door and 3 shelves. This cabinet takes up 12" of wall space, the door is 13-1/4" wide. It can be used as left or right. Learn More
- OE1230 Anchester Espresso Pre-AssembledWall end shelf cabinet 12" wide x 30" high x 12" deep with 2 shelves. This cabinet takes up 12" of wall space. It can be used as left or right. Learn More
- OE1236 Anchester Espresso Pre-AssembledWall end shelf cabinet 12" wide x 36" high x 12" deep with 2 shelves. This cabinet takes up 12" of wall space. It can be used as left or right. Learn More
- OE1242 Anchester Espresso Pre-AssembledWall end shelf cabinet 12" wide x 42" high x 12" deep with 2 shelves. This cabinet takes up 12" of wall space. It can be used as left or right. Learn More
- WRC3015 Anchester Espresso Pre-AssembledWine rack cabinet 30" wide x 15" high x 12" deep. Learn More
- WRC3615 Anchester Espresso Pre-AssembledWine rack cabinet 36" wide x 15" high x 12" deep. Learn More
- WRC3018 Anchester Espresso Pre-AssembledWine rack cabinet 30" wide x 18" high x 12" deep. Learn More
- WRC3618 Anchester Espresso Pre-AssembledWine rack cabinet 36" wide x 18" high x 12" deep. Learn More
- WCD3015 Anchester Espresso Pre-AssembledPlate rack cabinet 30" wide x 15" high x 12" deep. Learn More

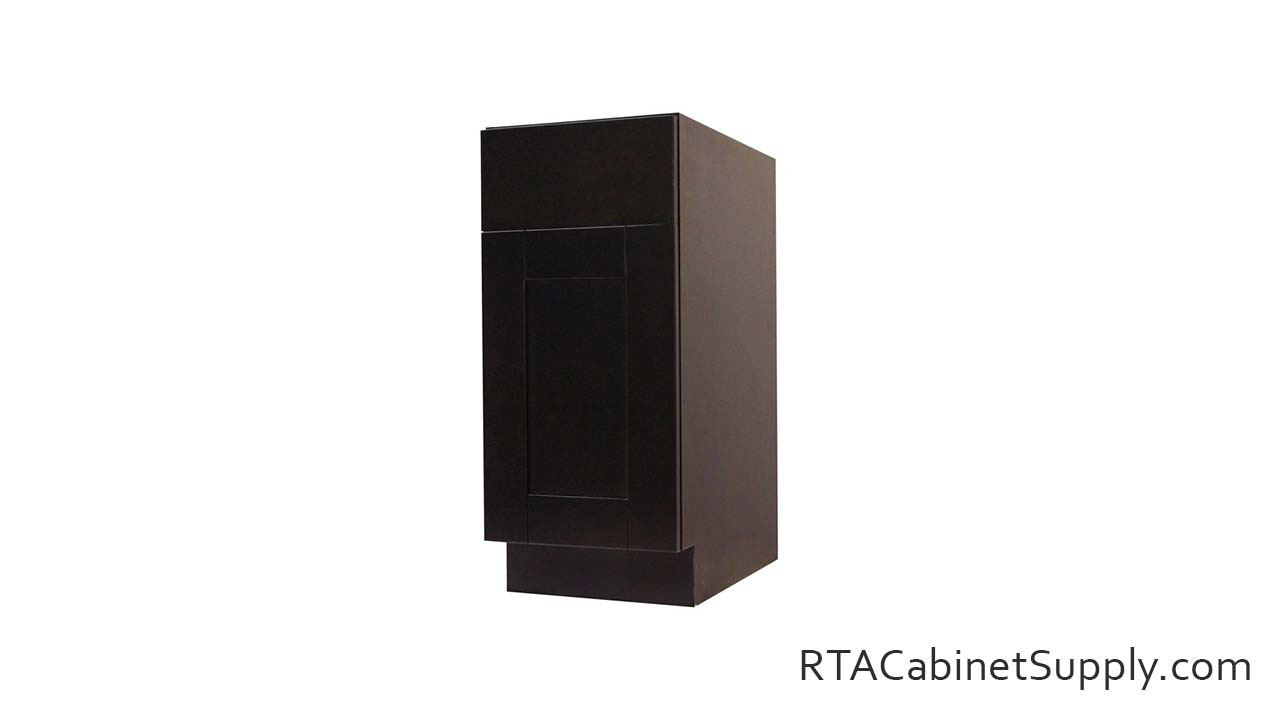

- B9 Anchester Espresso Pre-AssembledBase cabinet 9" wide x 34-1/2" high x 24" deep with 1 door, 1 drawer, and 1 shelf. Learn More
- BSR09 Anchester Espresso Pre-AssembledBase spice rail cabinet 9" wide x 34-1/2" high x 24" deep. Learn More
- B12 Anchester Espresso Pre-AssembledBase cabinet 12" wide x 34-1/2" high x 24" deep with 1 door, 1 drawer, and 1 shelf. Learn More
- B15 Anchester Espresso Pre-AssembledBase cabinet 15" wide x 34-1/2" high x 24" deep with 1 door, 1 drawer, and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The waste container pullout hardware is available in the Cabinet Organizers section. Learn More
- B18 Anchester Espresso Pre-AssembledBase cabinet 18" wide x 34-1/2" high x 24" deep with 1 door, 1 drawer, and 1 shelf. Learn More
- BWBK18-2 Anchester Espresso Pre-AssembledBase waste basket cabinet 18" wide x 34-1/2" high x 24" deep with 1 pullout door and 1 drawer. It includes a double waste container pullout mechanism and two waste containers. Learn More
- B21 Anchester Espresso Pre-AssembledBase cabinet 21" wide x 34-1/2" high x 24" deep with 1 door, 1 drawer, and 1 shelf. Learn More
- B24 Anchester Espresso Pre-AssembledBase cabinet 24" wide x 34-1/2" high x 24" deep with 2 doors, 1 drawer, and 1 shelf. Learn More
- B27 Anchester Espresso Pre-AssembledBase cabinet 27" wide x 34-1/2" high x 24" deep with 2 doors, 1 drawer, and 1 shelf. Learn More
- B30 Anchester Espresso Pre-AssembledBase cabinet 30" wide x 34-1/2" high x 24" deep with 2 doors, 1 drawer, and 1 shelf. Learn More
- B33 Anchester Espresso Pre-AssembledBase cabinet 33" wide x 34-1/2" high x 24" deep with 2 doors, 1 drawer, and 1 shelf. Learn More
- B36 Anchester Espresso Pre-AssembledBase cabinet 36" wide x 34-1/2" high x 24" deep with 2 doors, 1 drawer, and 1 shelf. Learn More
- B39 Anchester Espresso Pre-AssembledBase cabinet 39" wide x 34-1/2" high x 24" deep with 2 doors, 1 drawer, and 1 shelf. Learn More
- B42 Anchester Espresso Pre-AssembledBase cabinet 42" wide x 34-1/2" high x 24" deep with 2 doors, 1 drawer, and 1 shelf. Learn More
- DB12 Anchester Espresso Pre-AssembledDrawer base cabinet 12" wide x 34-1/2" high x 24" deep with 3 drawers. Learn More
- DB15 Anchester Espresso Pre-AssembledDrawer base cabinet 15" wide x 34-1/2" high x 24" deep with 3 drawers. Learn More
- DB18 Anchester Espresso Pre-AssembledDrawer base cabinet 18" wide x 34-1/2" high x 24" deep with 3 drawers. Learn More
- DB21 Anchester Espresso Pre-AssembledDrawer base cabinet 21" wide x 34-1/2" high x 24" deep with 3 drawers. Learn More
- DB24 Anchester Espresso Pre-AssembledDrawer base cabinet 24" wide x 34-1/2" high x 24" deep with 3 drawers. Learn More
- DB27 Anchester Espresso Pre-AssembledDrawer base cabinet 27" wide x 34-1/2" high x 24" deep with 3 drawers. Learn More
- DB30 Anchester Espresso Pre-AssembledDrawer base cabinet 30" wide x 34-1/2" high x 24" deep with 3 drawers. Learn More
- DB33 Anchester Espresso Pre-AssembledDrawer base cabinet 33" wide x 34-1/2" high x 24" deep with 3 drawers. Learn More
- DB36 Anchester Espresso Pre-AssembledDrawer base cabinet 36" wide x 34-1/2" high x 24" deep with 3 drawers. Learn More

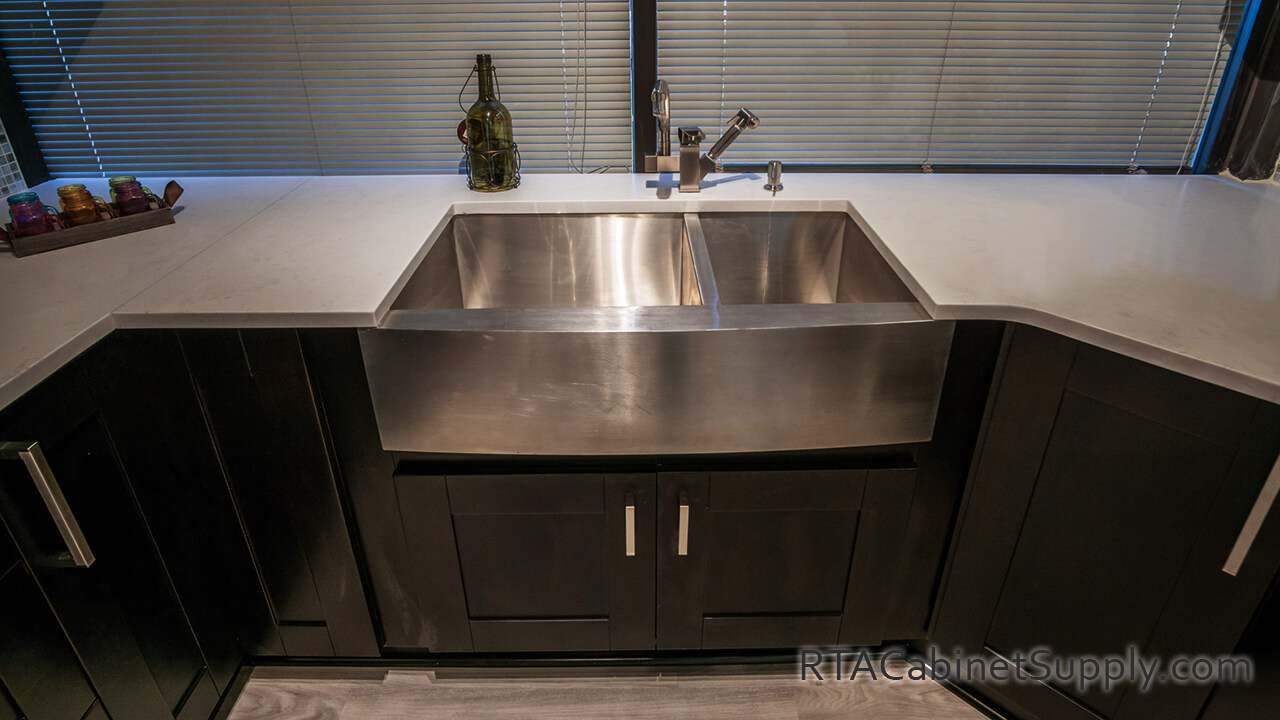

- SB24 Anchester Espresso Pre-AssembledSink base cabinet 24" wide x 34-1/2" high x 24" deep with 2 doors and 1 drawer front. Learn More
